AC9352 Rotating Grille Spotlight Series

Round and Square Anti-Glare Cups | 360 Degree Rotation | 0-20 Degree Vertical Adjustment

AC9352 is a rotating grille spotlight series with round anti-glare cup and square anti-glare cup options, designed for recessed commercial ceiling lighting projects.

B2B Only — For wholesalers, importers, distributors, contractors and commercial project buyers. No retail sales.
Adjustable SpotlightsLED Spotlights
Get a Quote Download Catalog

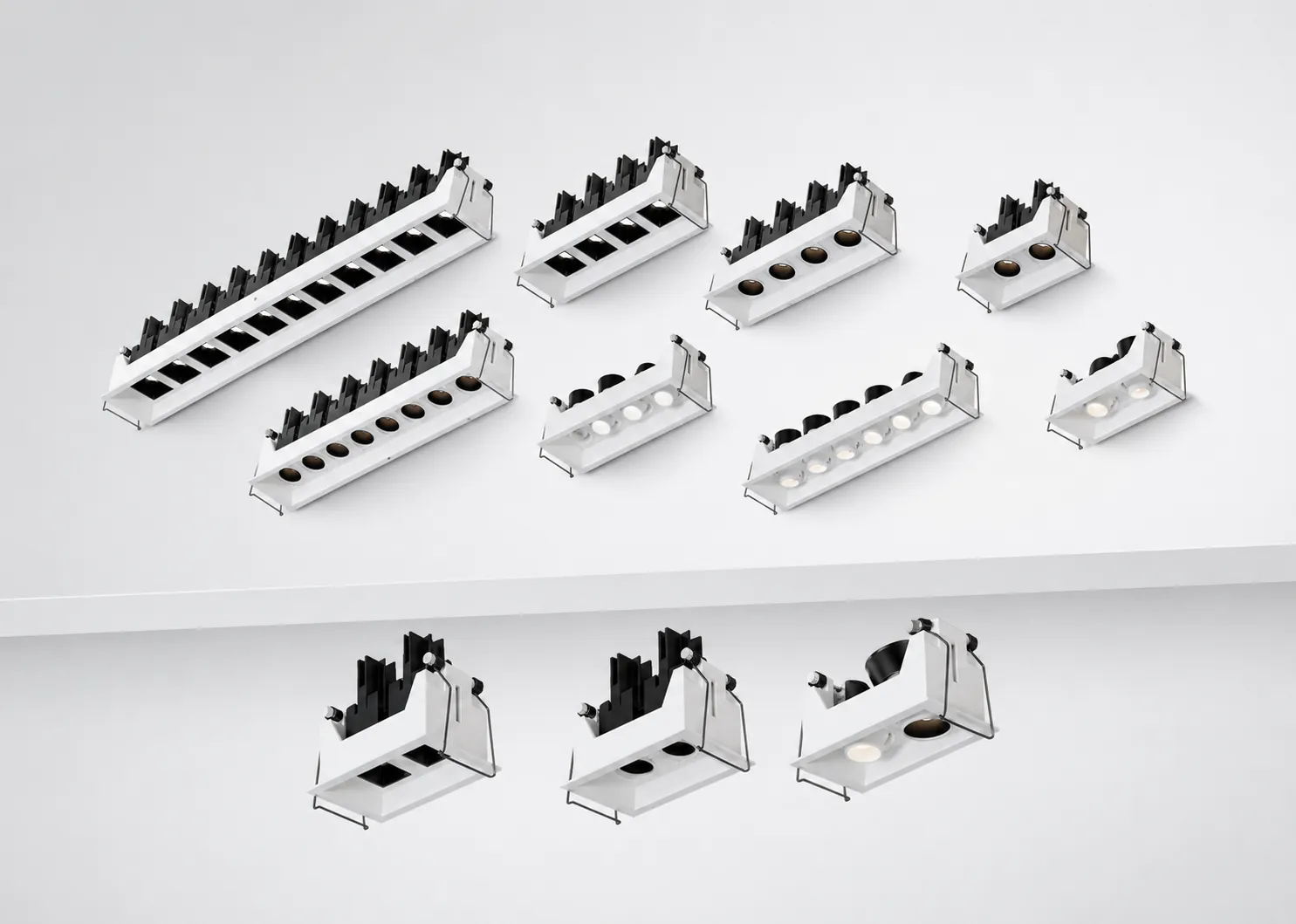

AC9352 rotating grille spotlight series with round and square anti-glare cup options
AC9352 rotating grille spotlight series with round and square anti-glare cup optionsAC9352 rotating grille spotlight with round and square anti-glare cup optionsAC9352 rotating grille spotlight square anti-glare cup specifications for 2-head 4-head and 8-head recessed modelsAC9352 rotating grille spotlight with 360-degree rotatable lamp head and 0-20 degree adjustmentAC9352 rotating grille spotlight round anti-glare cup specifications for 2-head 4-head and 8-head recessed models

Technical Specifications

model AC9352 Line Light Square
product_type Rotating recessed grille spotlight
installation Recessed ceiling installation
adjustment 360 degree horizontal rotation and 0-20 degree vertical adjustment
optical_options Round anti-glare cup / Square anti-glare cup
light_source CREE XPE
ip_level IP20
finish Matte White / Matte Black
beam_angle_options 15 degree / 24 degree / 38 degree / 50 degree
application Retail store, hotel, office, showroom, villa, apartment, corridor and commercial lighting projects
business_type B2B wholesale, OEM and ODM project support

Core Features

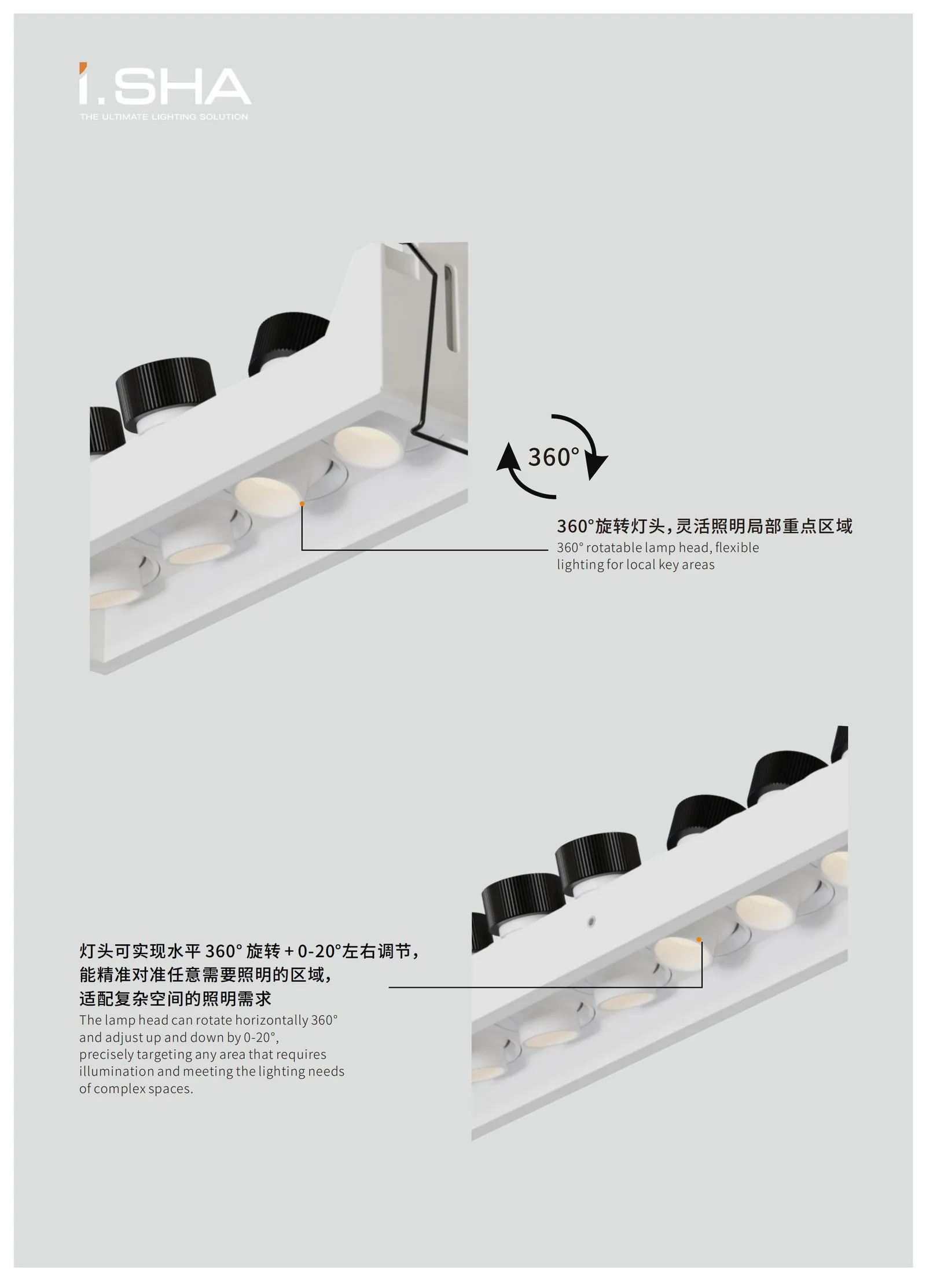

360 Degree Rotating Lamp Head

The AC9352 lamp head can rotate horizontally 360 degree, allowing flexible lighting direction for local key areas and commercial accent lighting.

0-20 Degree Vertical Adjustment

The adjustable structure supports 0-20 degree up and down aiming, helping the fixture target display areas, corridors, walls and key interior zones.

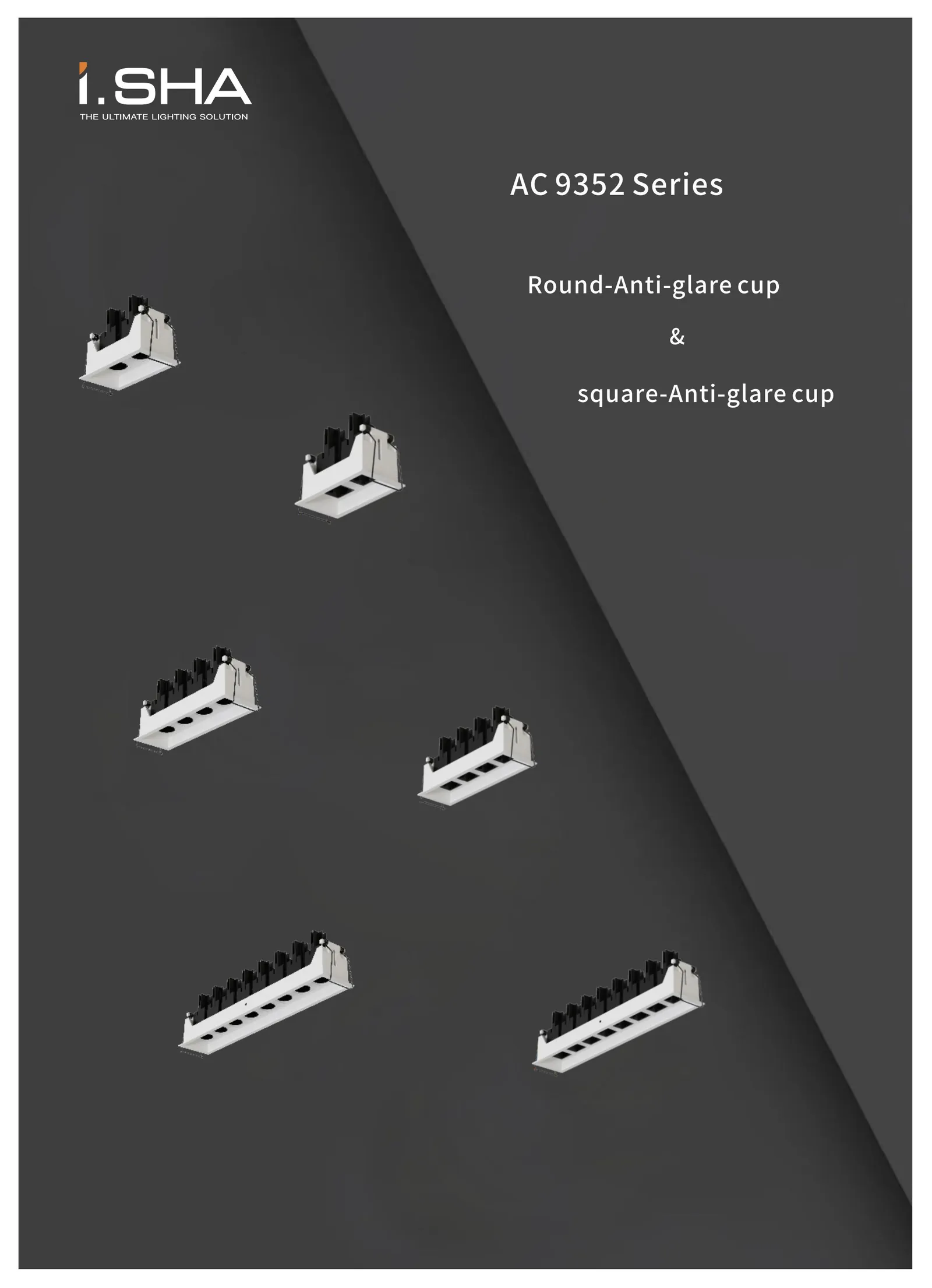

Round Anti-Glare Cup Option

The round anti-glare cup uses a deep bucket-shaped light-shielding design to reduce glare and improve visual comfort in commercial spaces.

Square Anti-Glare Cup Option

The square anti-glare cup combines black grille design with optical lens control to reduce direct brightness and create a cleaner lighting effect.

Multiple Recessed Configurations

The series includes 2-head, 4-head and 8-head recessed configurations, suitable for different ceiling layouts and illumination requirements.

Commercial Project Application

Suitable for retail stores, hotels, offices, showrooms, villas, apartments, corridors and other B2B commercial lighting projects.

Product Range Overview

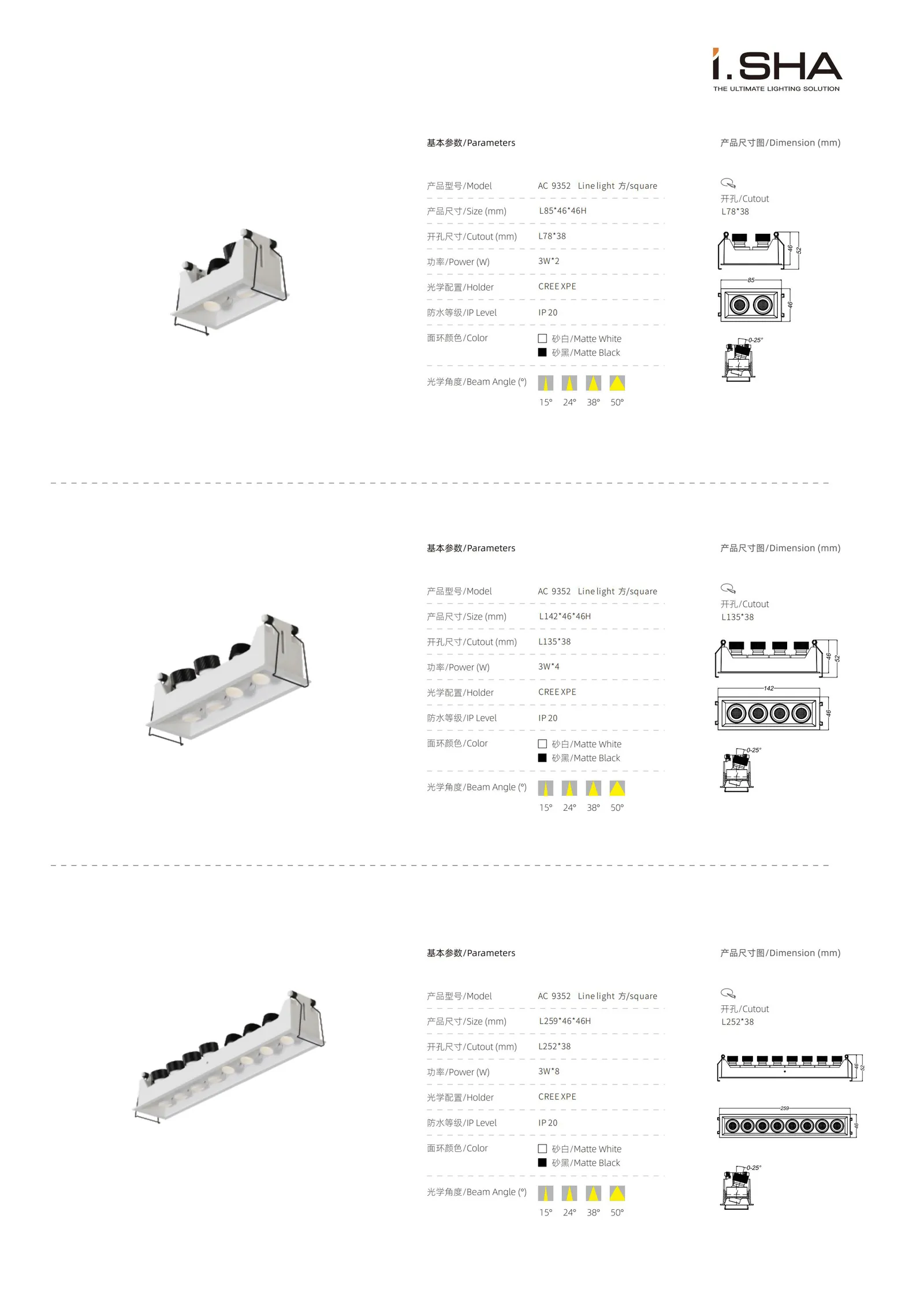

AC9352 Round Anti-Glare Cup 2-Head Spotlight

Compact 2-head rotating grille spotlight with round anti-glare cup design for small ceiling areas and accent lighting.

  • Model: AC9352 Line Light Square
  • Product size: L85 x 46 x 46H mm
  • Cutout size: L78 x 38 mm
  • Power: 3W x 2
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9352 Round Anti-Glare Cup 4-Head Spotlight

4-head rotating grille spotlight with round anti-glare cup design for retail displays, hotel corridors and compact commercial ceilings.

  • Model: AC9352 Line Light Square
  • Product size: L142 x 46 x 46H mm
  • Cutout size: L135 x 38 mm
  • Power: 3W x 4
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9352 Round Anti-Glare Cup 8-Head Spotlight

8-head rotating grille spotlight with round anti-glare cup design for longer ceiling lines and commercial lighting layouts.

  • Model: AC9352 Line Light Square
  • Product size: L259 x 46 x 46H mm
  • Cutout size: L252 x 38 mm
  • Power: 3W x 8
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

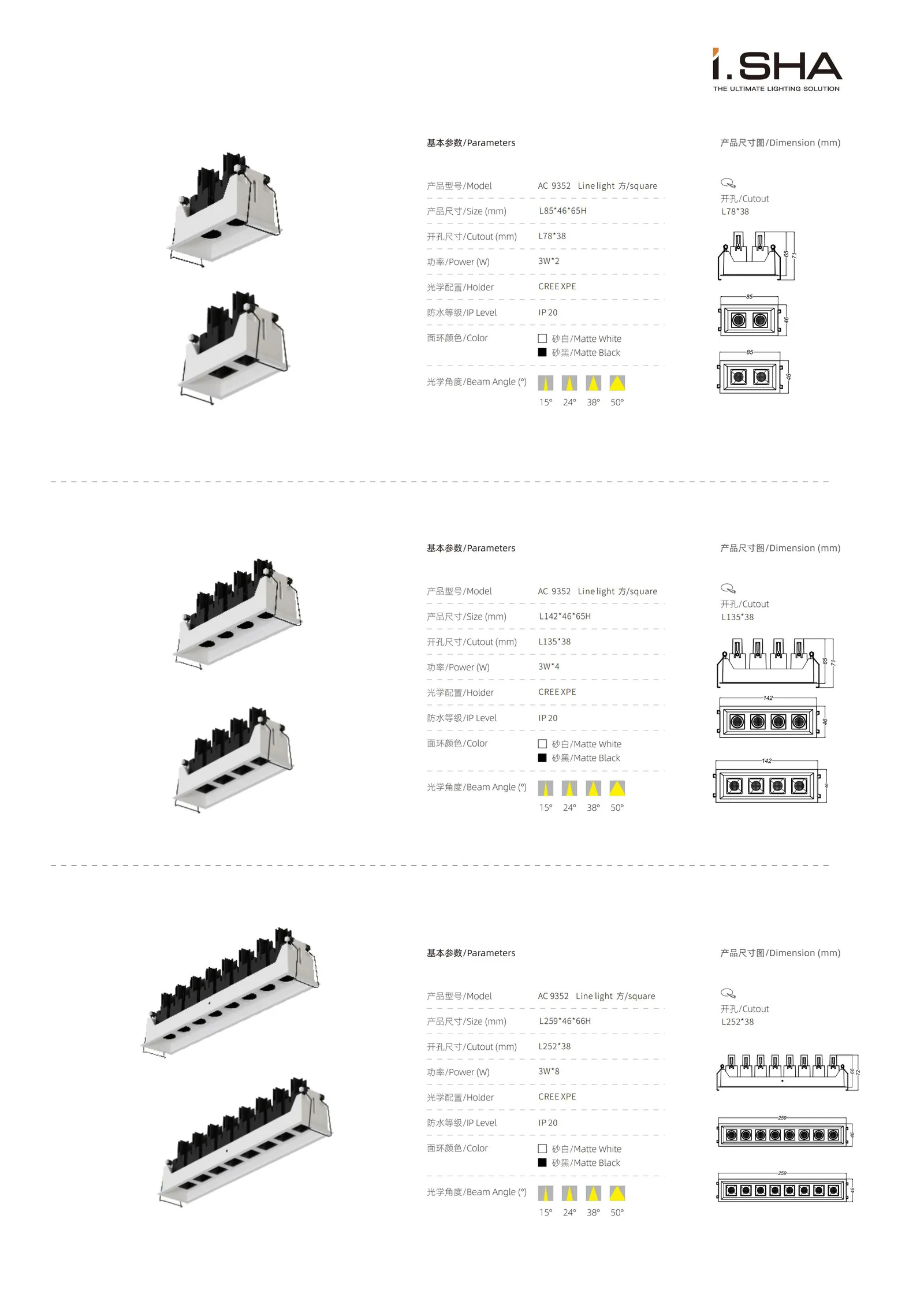

AC9352 Square Anti-Glare Cup 2-Head Spotlight

2-head rotating grille spotlight with square anti-glare cup design for refined recessed ceiling lighting projects.

  • Model: AC9352 Line Light Square
  • Product size: L85 x 46 x 65H mm
  • Cutout size: L78 x 38 mm
  • Power: 3W x 2
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9352 Square Anti-Glare Cup 4-Head Spotlight

4-head rotating grille spotlight with square anti-glare cup design for offices, showrooms, retail stores and hotel interiors.

  • Model: AC9352 Line Light Square
  • Product size: L142 x 46 x 65H mm
  • Cutout size: L135 x 38 mm
  • Power: 3W x 4
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9352 Square Anti-Glare Cup 8-Head Spotlight

8-head rotating grille spotlight with square anti-glare cup design for larger commercial spaces requiring directional recessed lighting.

  • Model: AC9352 Line Light Square
  • Product size: L259 x 46 x 66H mm
  • Cutout size: L252 x 38 mm
  • Power: 3W x 8
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

Applications

  • Retail Store Lighting
  • Suitable for product display zones, store aisles, brand shops and commercial interiors requiring adjustable key lighting.
  • Hotel Lighting
  • Can be used in guest rooms, corridors, elevator halls, reception areas and public spaces requiring low-glare recessed spot lighting.
  • Office and Showroom Lighting
  • Suitable for meeting rooms, workspaces, showrooms and commercial spaces where flexible lighting direction is needed.
  • Villa and Apartment Projects
  • Suitable for high-end residential interiors requiring clean ceiling integration, anti-glare optics and adjustable accent lighting.

Buyer Summary

AC9352 is suitable for B2B buyers looking for recessed rotating grille spotlights with round and square anti-glare cup options. The series supports 360 degree horizontal rotation, 0-20 degree vertical adjustment, CREE XPE light source, IP20 indoor application, matte white and matte black finishes, and 2-head, 4-head and 8-head configurations for commercial ceiling lighting projects.

The AC9352 rotating grille spotlight series is a recessed commercial lighting solution designed for projects that require flexible beam aiming, anti-glare performance and clean ceiling integration. The series includes both round anti-glare cup and square anti-glare cup options, allowing lighting designers and project buyers to select different optical appearances according to ceiling design and lighting effect requirements. The lamp head can rotate horizontally 360 degree and support 0-20 degree vertical adjustment, making it suitable for areas that need directional lighting, local key area lighting and flexible accent illumination. With CREE XPE light source, IP20 indoor rating, matte white and matte black finish options, and beam angle choices including 15 degree, 24 degree, 38 degree and 50 degree, the AC9352 rotating grille spotlight series is suitable for hotels, retail stores, offices, showrooms, villas, apartments, corridors and other commercial interior lighting projects. Isha Lighting supplies AC9352 for B2B lighting buyers, including wholesalers, importers, distributors, contractors and commercial project buyers.

FAQ

What is the AC9352 rotating grille spotlight series used for?

The AC9352 rotating grille spotlight series is used for indoor commercial ceiling lighting, including retail stores, hotels, offices, showrooms, corridors, villas, apartments and modern interior projects.

What adjustment does AC9352 support?

AC9352 supports 360 degree horizontal lamp head rotation and 0-20 degree vertical adjustment, making it suitable for directional lighting and local key area illumination.

What anti-glare options are available for AC9352?

The AC9352 series includes round anti-glare cup and square anti-glare cup options, allowing buyers to choose different optical appearances and glare-control effects.

What configurations are available for AC9352?

The AC9352 series includes 2-head, 4-head and 8-head recessed grille spotlight configurations for different ceiling layouts and project lighting requirements.

Is AC9352 suitable for B2B wholesale orders?

Yes. Isha Lighting supplies the AC9352 rotating grille spotlight series for wholesalers, importers, distributors, contractors and commercial project buyers. Bulk orders only. No retail sales.

Can Isha Lighting support OEM or ODM requirements for this product?

Yes. Isha Lighting supports OEM and ODM requirements for suitable B2B lighting projects, including configuration selection, finish options and project lighting support.
