AC9349 Optical Grille Spotlight Series

CREE 3535 | Anti-Glare Grille | Radic Lens | UGR Below 19

AC9349 is an optical grille spotlight series with circular hole, square hole and high-efficiency optical models, designed for recessed commercial ceiling lighting projects.

B2B Only — For wholesalers, importers, distributors, contractors and commercial project buyers. No retail sales.
Grille SpotlightsLED Spotlights
Get a Quote Download Catalog

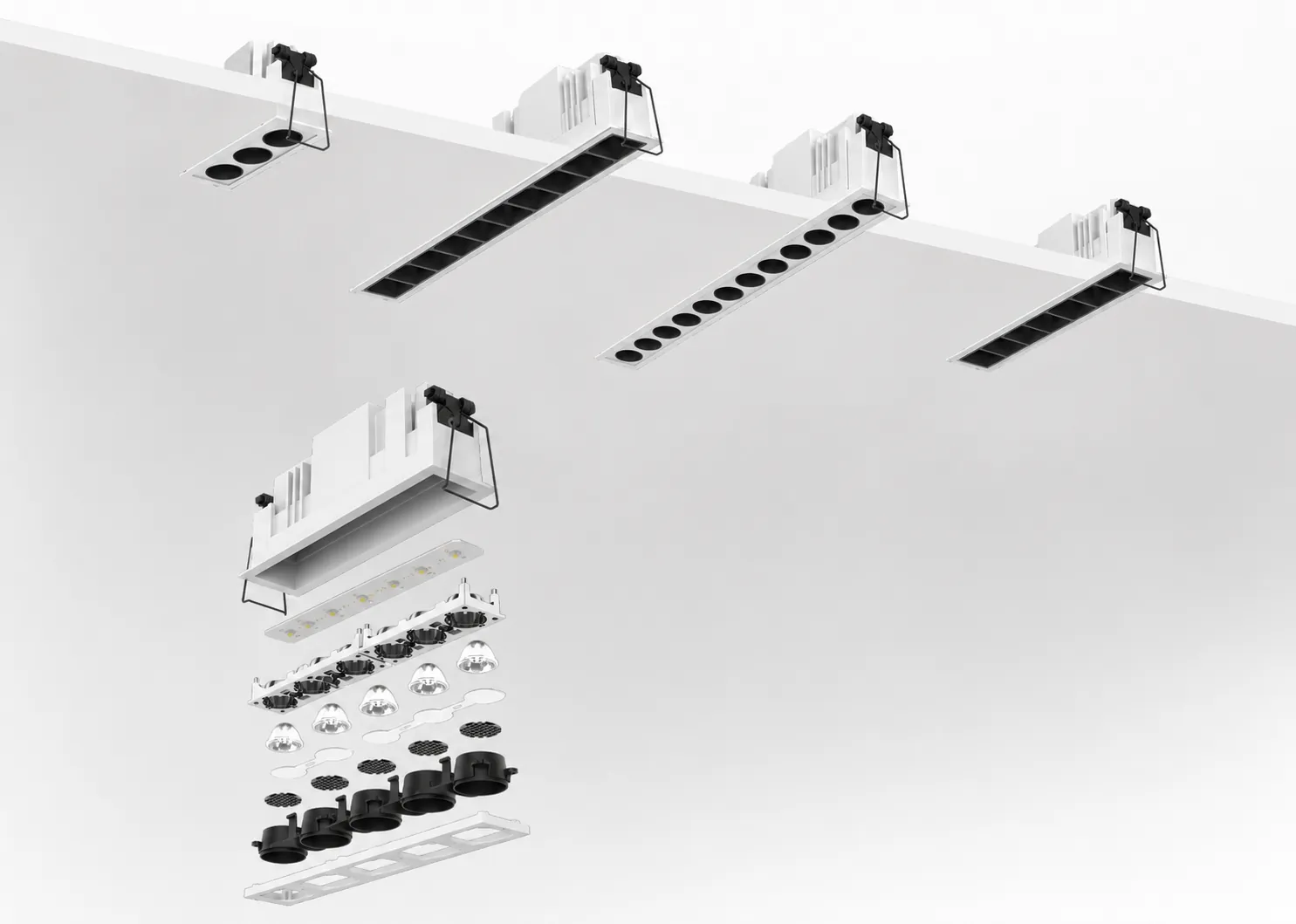

AC9349 optical grille spotlight series with recessed installation and anti-glare optical structure

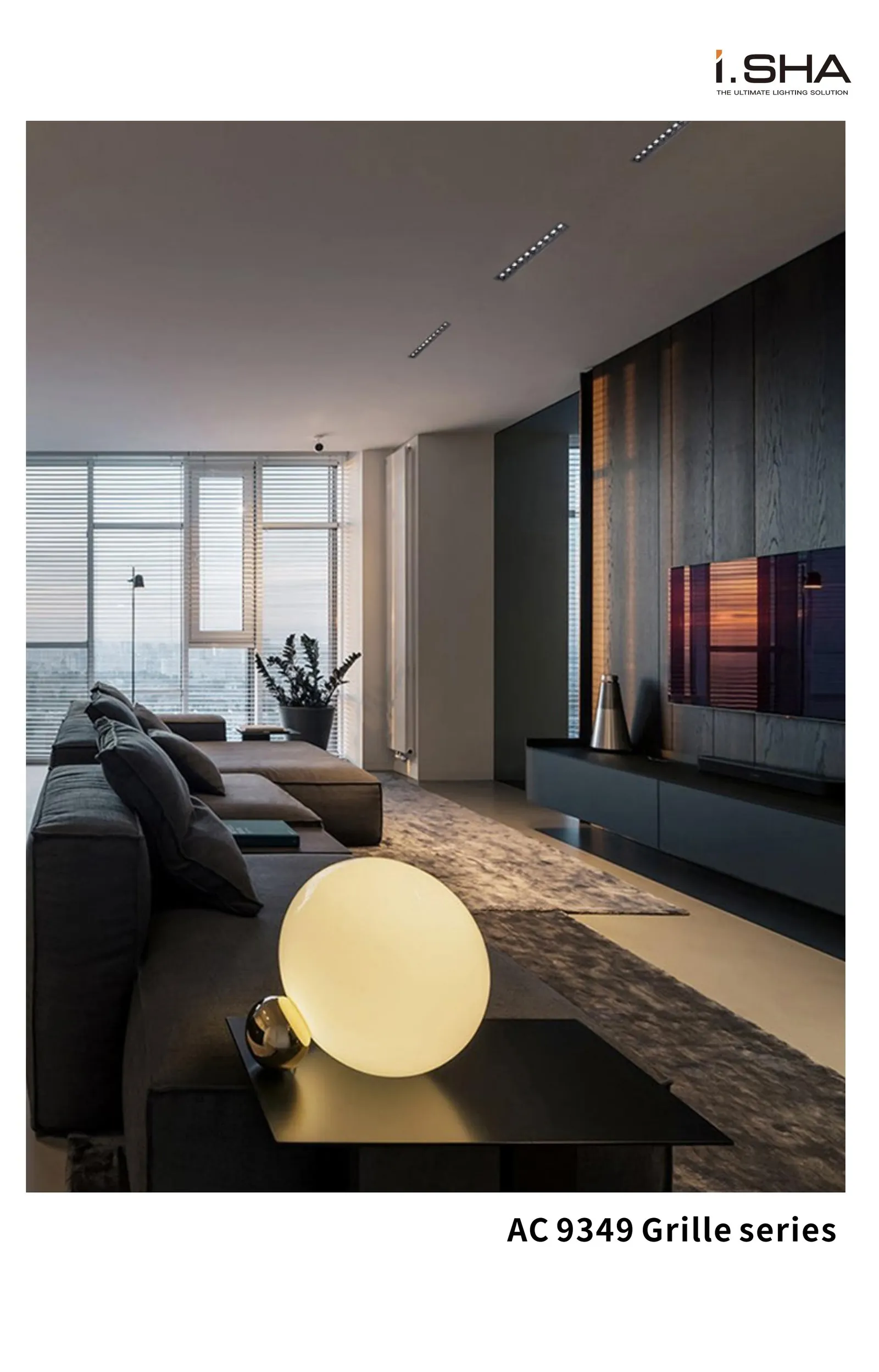

AC9349 optical grille spotlight series with recessed installation and anti-glare optical structureAC9349 optical grille spotlight specifications for 1-head 2-head 3-head and 4-head recessed modelsAC9349 optical grille spotlight specifications for 5-head 6-head 10-head and 12-head recessed modelsAC9349 optical grille spotlight high-efficiency optical model with recessed linear designAC9349 optical grille spotlight high-efficiency specifications for 3-head 5-head and 10-head recessed modelsAC9349 optical grille spotlight application in modern interior ceiling lighting project

Technical Specifications

model AC9349 Line Light Square
product_type Optical recessed grille spotlight
installation Recessed ceiling installation
optical_styles A Circular Hole Optical Style / B Square Hole Optical Model / C High-Efficiency Optical Model
light_source CREE 3535
ip_level IP20
finish Matte White / Matte Black
beam_angle_options 15 degree / 24 degree / 38 degree / 50 degree for standard models, 30 degree / 40 degree for high-efficiency optical models
glare_control UGR below 19
application Hotel, apartment, villa, corridor, office, retail store, showroom and commercial lighting projects
business_type B2B wholesale, OEM and ODM project support

Core Features

Three Optical Style Options

AC9349 offers circular hole optical style, square hole optical model and high-efficiency optical model to meet different project lighting effects.

Anti-Glare Grille and Radic Lens

The optical module includes anti-glare grille and Radic lens to control the light angle and keep glare value below 19 for improved visual comfort.

CREE 3535 LED Chip

The AC9349 optical grille spotlight series uses CREE 3535 LED chips to support stable light output and reliable commercial lighting performance.

High Thermal Conductivity Housing

The lamp body uses die-cast aluminum with high thermal conductivity to assist heat dissipation and support the lifespan of the fixture.

Multiple Recessed Configurations

The series includes compact single-head models and longer multi-head recessed models for different ceiling layouts and project requirements.

Commercial Project Application

Suitable for hotels, retail stores, offices, showrooms, villas, apartments, corridors and other B2B commercial lighting projects.

Product Range Overview

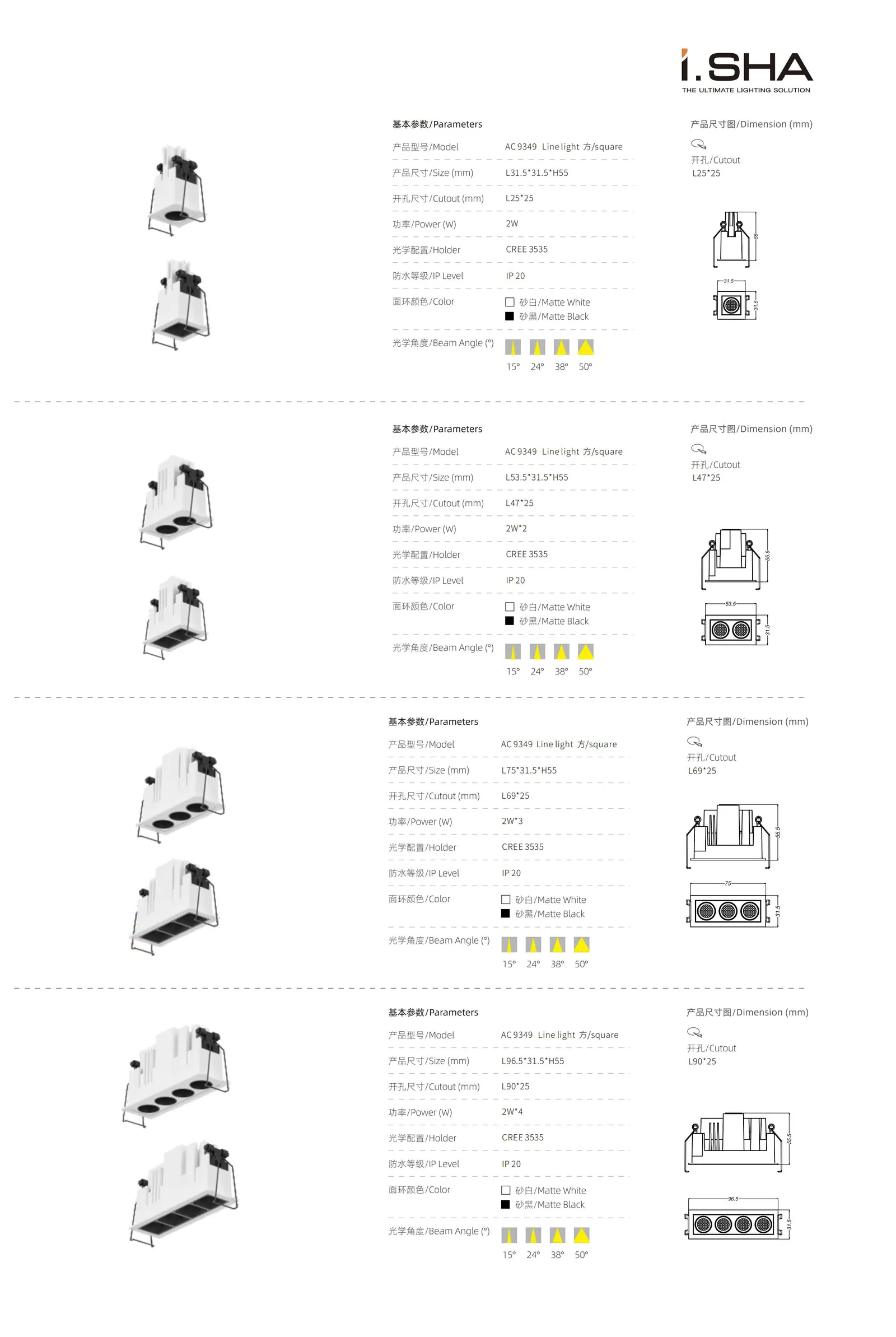

AC9349 1-Head Optical Grille Spotlight

Compact single-head optical grille spotlight for small ceiling areas, accent lighting and refined commercial interiors.

  • Model: AC9349 Line Light Square
  • Product size: L31.5 x 31.5 x H55 mm
  • Cutout size: L25 x 25 mm
  • Power: 2W
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 2-Head Optical Grille Spotlight

2-head recessed optical grille spotlight for hotels, corridors, retail displays and compact ceiling layouts.

  • Model: AC9349 Line Light Square
  • Product size: L53.5 x 31.5 x H55 mm
  • Cutout size: L47 x 25 mm
  • Power: 2W x 2
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 3-Head Optical Grille Spotlight

3-head recessed grille spotlight for balanced accent lighting in offices, villas, apartments and commercial spaces.

  • Model: AC9349 Line Light Square
  • Product size: L75 x 31.5 x H55 mm
  • Cutout size: L69 x 25 mm
  • Power: 2W x 3
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 4-Head Optical Grille Spotlight

4-head optical grille spotlight for compact commercial ceiling lighting and display area illumination.

  • Model: AC9349 Line Light Square
  • Product size: L96.5 x 31.5 x H55 mm
  • Cutout size: L90 x 25 mm
  • Power: 2W x 4
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

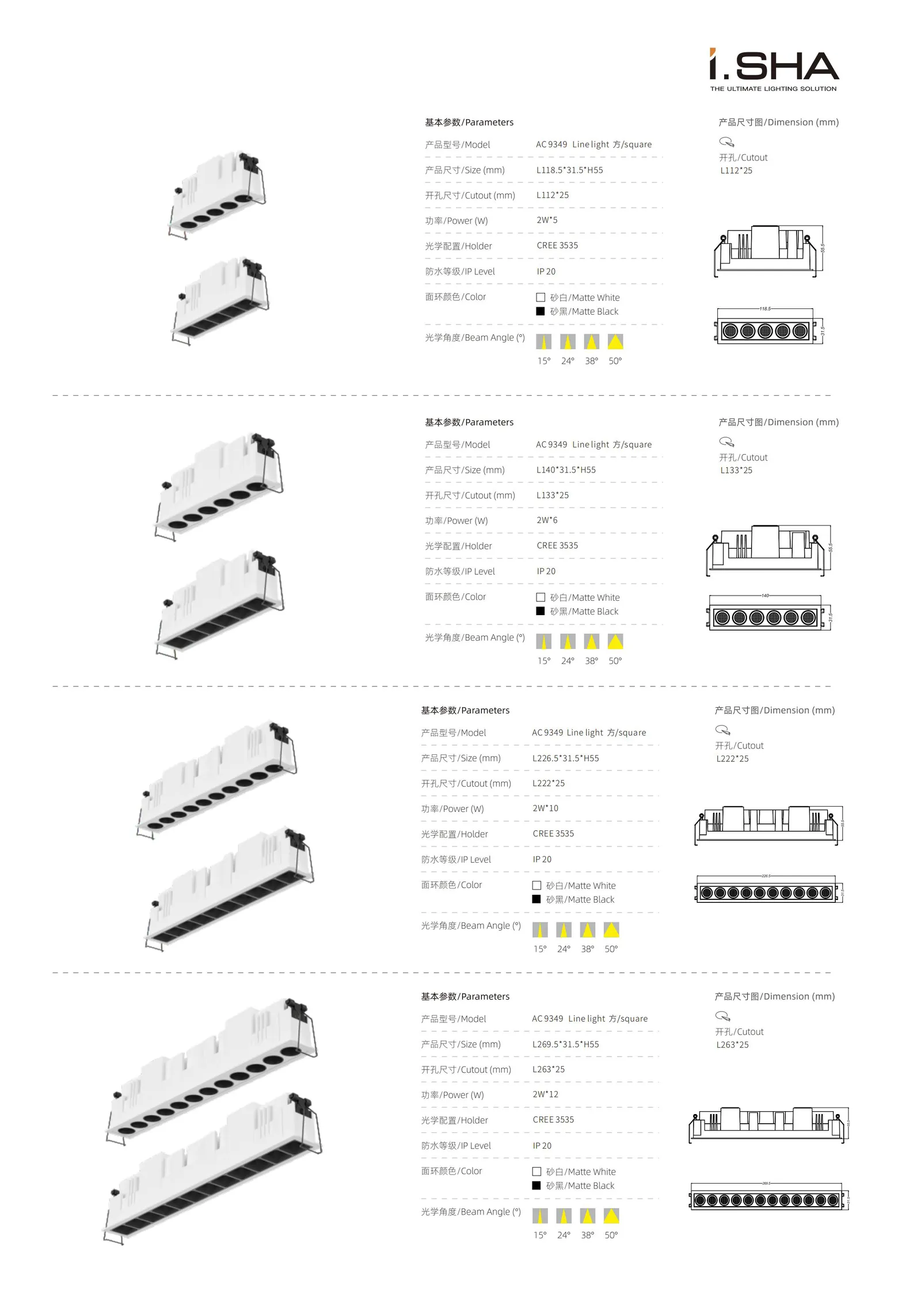

AC9349 5-Head Optical Grille Spotlight

5-head recessed optical grille spotlight for commercial interiors requiring clean linear illumination.

  • Model: AC9349 Line Light Square
  • Product size: L118.5 x 31.5 x H55 mm
  • Cutout size: L112 x 25 mm
  • Power: 2W x 5
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 6-Head Optical Grille Spotlight

6-head recessed optical grille spotlight for retail stores, corridors, hotel areas and office ceiling layouts.

  • Model: AC9349 Line Light Square
  • Product size: L140 x 31.5 x H55 mm
  • Cutout size: L133 x 25 mm
  • Power: 2W x 6
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 10-Head Optical Grille Spotlight

10-head optical grille spotlight for longer ceiling lines and commercial spaces requiring continuous lighting.

  • Model: AC9349 Line Light Square
  • Product size: L226.5 x 31.5 x H55 mm
  • Cutout size: L222 x 25 mm
  • Power: 2W x 10
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9349 12-Head Optical Grille Spotlight

12-head recessed optical grille spotlight for larger commercial interiors and long linear ceiling lighting layouts.

  • Model: AC9349 Line Light Square
  • Product size: L269.5 x 31.5 x H55 mm
  • Cutout size: L263 x 25 mm
  • Power: 2W x 12
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

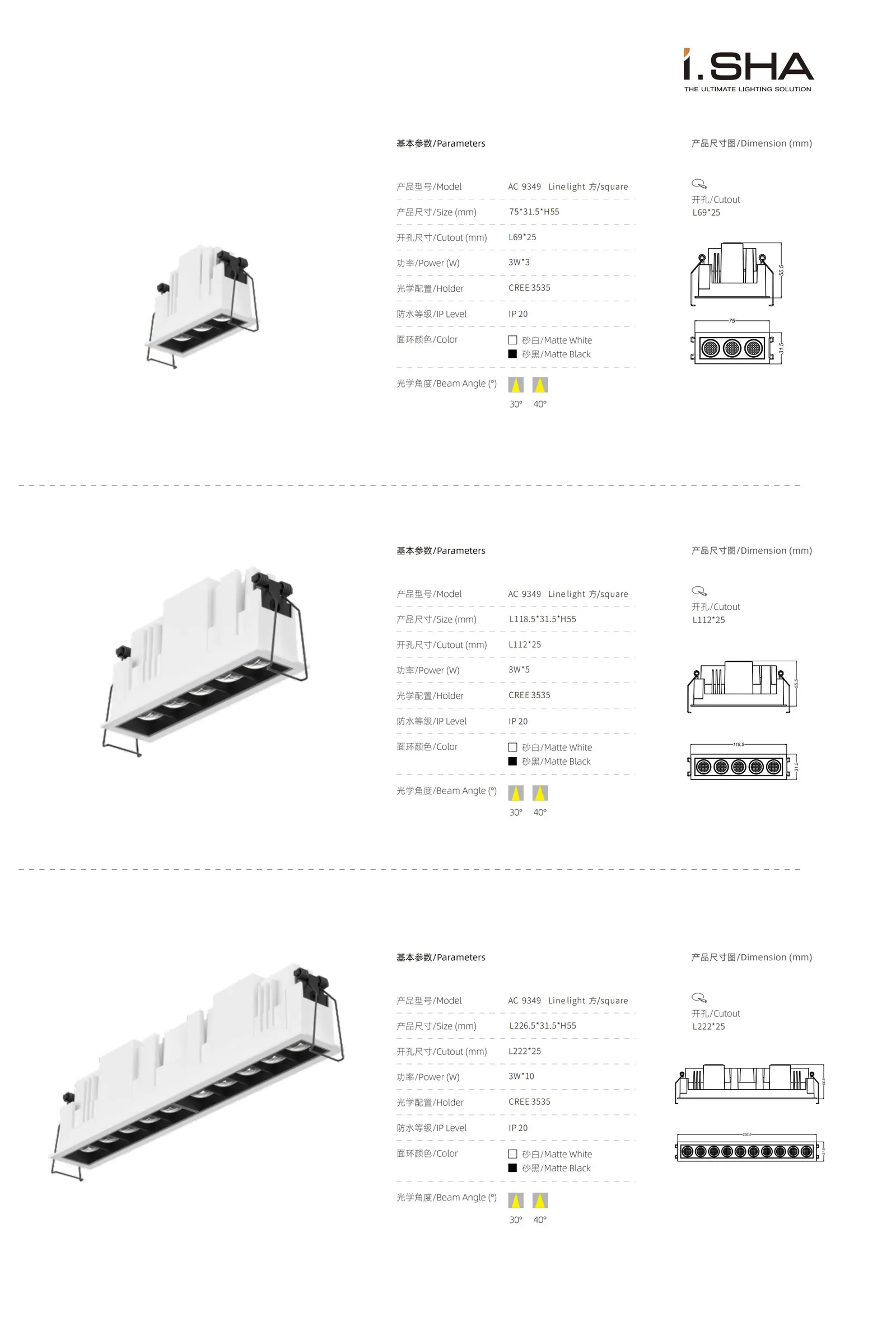

AC9349 C-Type 3-Head High-Efficiency Optical Model

High-efficiency 3-head optical model for stronger output and soft commercial lighting performance.

  • Model: AC9349 Line Light Square
  • Product size: L75 x 31.5 x H55 mm
  • Cutout size: L69 x 25 mm
  • Power: 3W x 3
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 30 degree / 40 degree

AC9349 C-Type 5-Head High-Efficiency Optical Model

High-efficiency 5-head optical model for commercial ceiling projects requiring higher brightness and controlled glare.

  • Model: AC9349 Line Light Square
  • Product size: L118.5 x 31.5 x H55 mm
  • Cutout size: L112 x 25 mm
  • Power: 3W x 5
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 30 degree / 40 degree

AC9349 C-Type 10-Head High-Efficiency Optical Model

High-efficiency 10-head optical model for long recessed lighting lines in offices, retail stores and commercial interiors.

  • Model: AC9349 Line Light Square
  • Product size: L226.5 x 31.5 x H55 mm
  • Cutout size: L222 x 25 mm
  • Power: 3W x 10
  • Holder: CREE 3535
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 30 degree / 40 degree

Applications

  • Hotel and Apartment Lighting
  • Suitable for guest rooms, corridors, elevator halls, apartments and public areas requiring recessed low-glare lighting.
  • Retail Store Lighting
  • The optical grille spotlight design is suitable for product display zones, store aisles, brand shops and showroom lighting.
  • Office and Commercial Lighting
  • Can be used in meeting rooms, workspaces, reception areas and commercial interiors requiring clean ceiling integration.
  • Villa and Residential Projects
  • Suitable for high-end residential interiors requiring compact recessed lighting, visual comfort and refined ceiling design.

Buyer Summary

AC9349 is suitable for B2B buyers looking for a recessed optical grille spotlight with multiple optical styles, CREE 3535 LED chips, anti-glare grille, Radic lens and UGR below 19. The series supports circular hole, square hole and high-efficiency optical models, with multiple power and length options for commercial ceiling lighting projects.

The AC9349 optical grille spotlight series is a recessed commercial lighting solution designed for projects that require high visual comfort, clean ceiling integration and flexible linear lighting layouts. This optical grille spotlight series offers three optical styles: circular hole optical style, square hole optical model and high-efficiency optical model. The optical module includes anti-glare grille and Radic lens, helping control the angle of light and keep the glare value below 19 to improve visual comfort. The AC9349 optical grille spotlight series uses CREE 3535 LED chips and a die-cast aluminum body with high thermal conductivity, supporting heat dissipation and long-term product reliability. With IP20 indoor rating, matte white and matte black finish options, and beam angle choices including 15 degree, 24 degree, 38 degree and 50 degree for standard models, AC9349 is suitable for hotels, apartments, retail stores, offices, showrooms, villas, corridors and commercial interior projects. Isha Lighting supplies this optical grille spotlight series for B2B lighting buyers, including wholesalers, importers, distributors, contractors and commercial project buyers.

FAQ

What is the AC9349 optical grille spotlight series used for?

The AC9349 optical grille spotlight series is used for indoor commercial ceiling lighting, including hotels, apartments, villas, offices, retail stores, showrooms, corridors and modern interior projects.

What optical styles are available for AC9349?

AC9349 offers three optical styles: A circular hole optical style, B square hole optical model and C high-efficiency optical model.

What glare-control design does AC9349 use?

The AC9349 optical module includes anti-glare grille and Radic lens, helping control the light angle and keep the glare value below 19 for improved visual comfort.

What LED chip does AC9349 use?

The AC9349 optical grille spotlight series uses CREE 3535 LED chips for stable output and reliable commercial lighting performance.

Is AC9349 suitable for B2B wholesale orders?

Yes. Isha Lighting supplies the AC9349 optical grille spotlight series for wholesalers, importers, distributors, contractors and commercial project buyers. Bulk orders only. No retail sales.

Can Isha Lighting support OEM or ODM requirements for this product?

Yes. Isha Lighting supports OEM and ODM requirements for suitable B2B lighting projects, including optical style selection, finish options and project lighting support.
