AC9347 Grille Spotlight Supplier China

Comprehensive Upgrade | Trim and Trimless Options | 25 Degree Adjustable Lamp Head

AC9347 is an upgraded grille spotlight series from Isha Lighting, designed with flexible module options, trim and trimless installation, 25 degree lamp head adjustment and multiple 3-head, 6-head and 12-head configurations for B2B commercial lighting projects.

B2B Only — For wholesalers, importers, distributors, contractors and commercial project buyers. No retail sales.
Grille SpotlightsLED Spotlights
Get a Quote Download Catalog

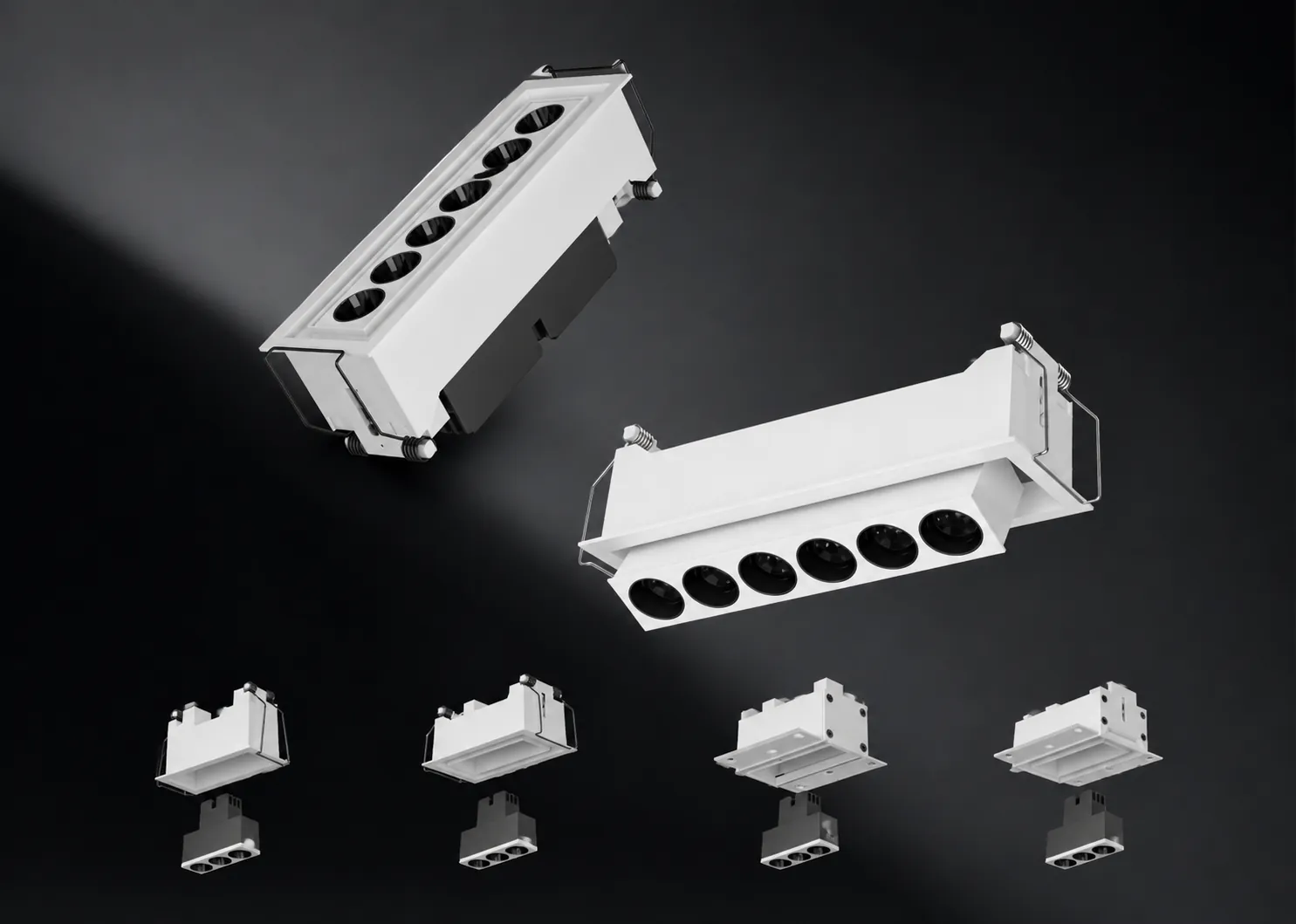

AC9347 grille spotlight supplier China series with 25 degree adjustable recessed modular design
AC9347 grille spotlight supplier China series with 25 degree adjustable recessed modular designAC9347 grille spotlight supplier China wide specifications for 3-head 6-head and 12-head recessed modelsAC9347 grille spotlight supplier China product overview with modular trim and trimless recessed designsAC9347 grille spotlight supplier China narrow specifications for 3-head 6-head and 12-head recessed models

Technical Specifications

model AC9347 Line Light Square
product_type Recessed grille spotlight
installation Recessed ceiling installation, trim and trimless options
adjustment 25 degree lamp head adjustment on selected versions
light_source CREE XPE
ip_level IP20
finish Matte White / Matte Black
beam_angle_options 15 degree / 24 degree / 38 degree / 50 degree
available_configurations 3-head / 6-head / 12-head
application Hotel, apartment, villa, corridor, office, retail store, showroom and commercial lighting projects
business_type B2B wholesale, OEM and ODM project support
supplier_terms Grille spotlight supplier China, grille spotlight manufacturer China, grille spotlight factory China, wholesale grille spotlight China

Core Features

Comprehensive Upgrade Design

AC9347 features an upgraded structure with refined size, flexible module design and stronger project adaptability for commercial ceiling lighting.

Trim and Trimless Options

The series supports both trim and trimless installation styles, helping designers match different ceiling details and interior design requirements.

25 Degree Lamp Head Adjustment

Selected models support 25 degree lamp head adjustment, allowing more precise control of beam direction for key lighting areas.

Multiple Modular Configurations

AC9347 includes 3-head, 6-head and 12-head configurations in different body widths for flexible commercial lighting layouts.

CREE XPE Light Source

The series uses CREE XPE light source to support stable lighting output and reliable performance for indoor commercial applications.

B2B China Factory Supply

Isha Lighting supplies AC9347 as a grille spotlight supplier China solution for wholesalers, importers, distributors, contractors and commercial project buyers.

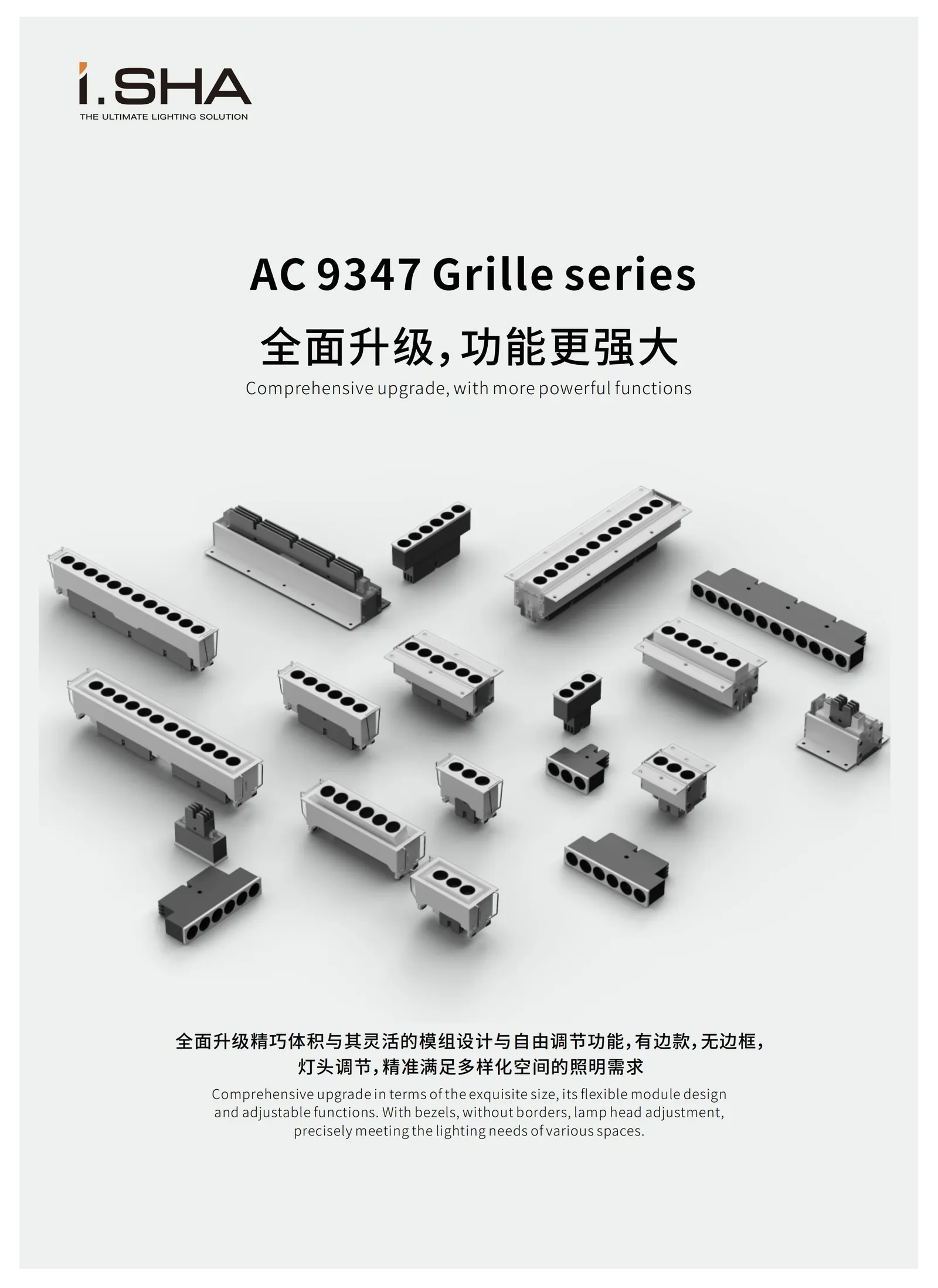

Product Range Overview

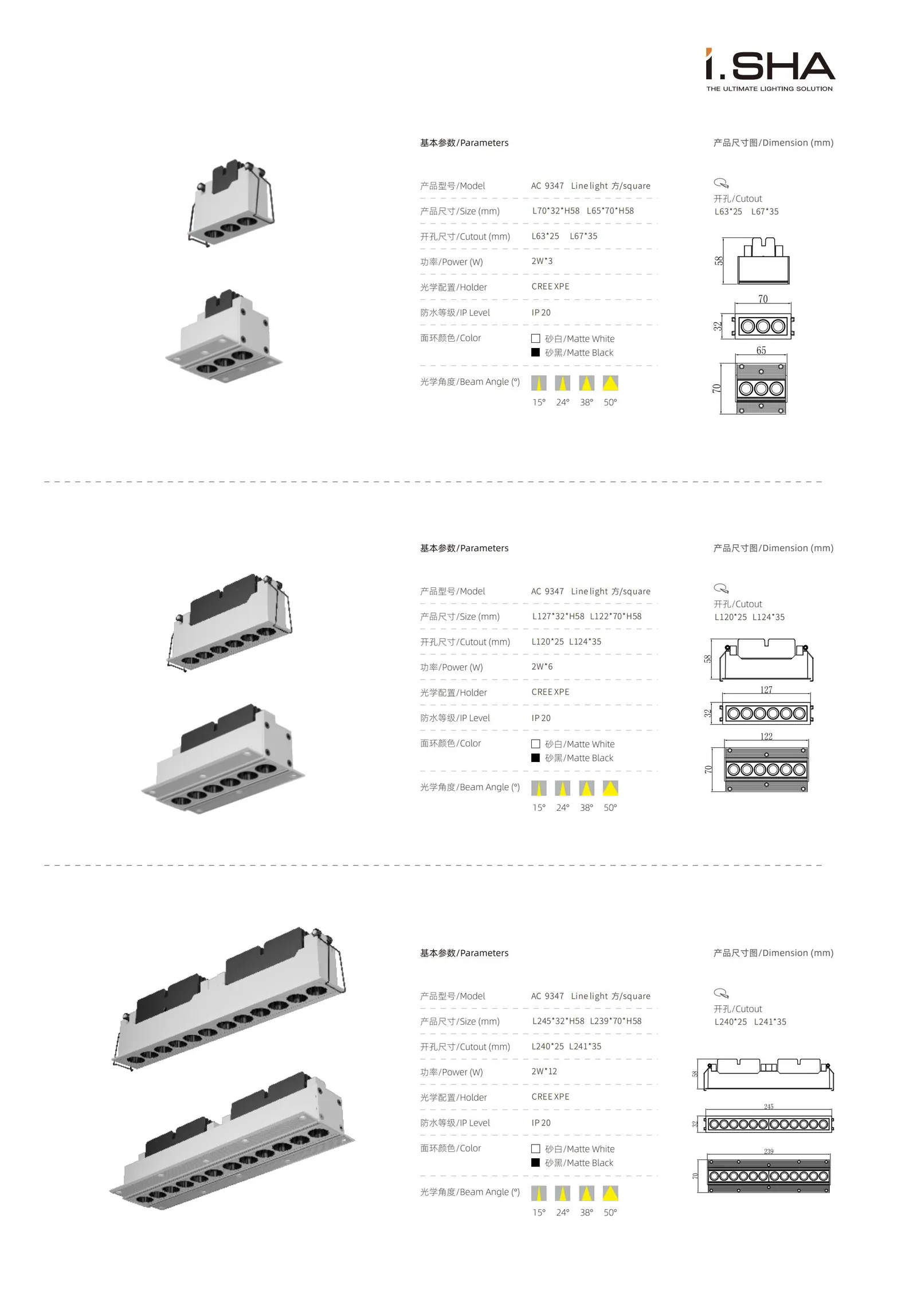

AC9347 Narrow 3-Head Grille Spotlight

Compact 3-head recessed grille spotlight for small ceiling areas, corridors, display zones and refined commercial interiors.

  • Model: AC9347 Line Light Square
  • Product size: L70 x 32 x H58 mm / L65 x 70 x H58 mm
  • Cutout size: L63 x 25 mm / L67 x 35 mm
  • Power: 2W x 3
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9347 Narrow 6-Head Grille Spotlight

6-head recessed grille spotlight for offices, hotel corridors, retail displays and compact commercial ceiling layouts.

  • Model: AC9347 Line Light Square
  • Product size: L127 x 32 x H58 mm / L122 x 70 x H58 mm
  • Cutout size: L120 x 25 mm / L124 x 35 mm
  • Power: 2W x 6
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9347 Narrow 12-Head Grille Spotlight

Long 12-head recessed grille spotlight for continuous linear ceiling lighting in commercial and architectural interiors.

  • Model: AC9347 Line Light Square
  • Product size: L245 x 32 x H58 mm / L239 x 70 x H58 mm
  • Cutout size: L240 x 25 mm / L241 x 35 mm
  • Power: 2W x 12
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

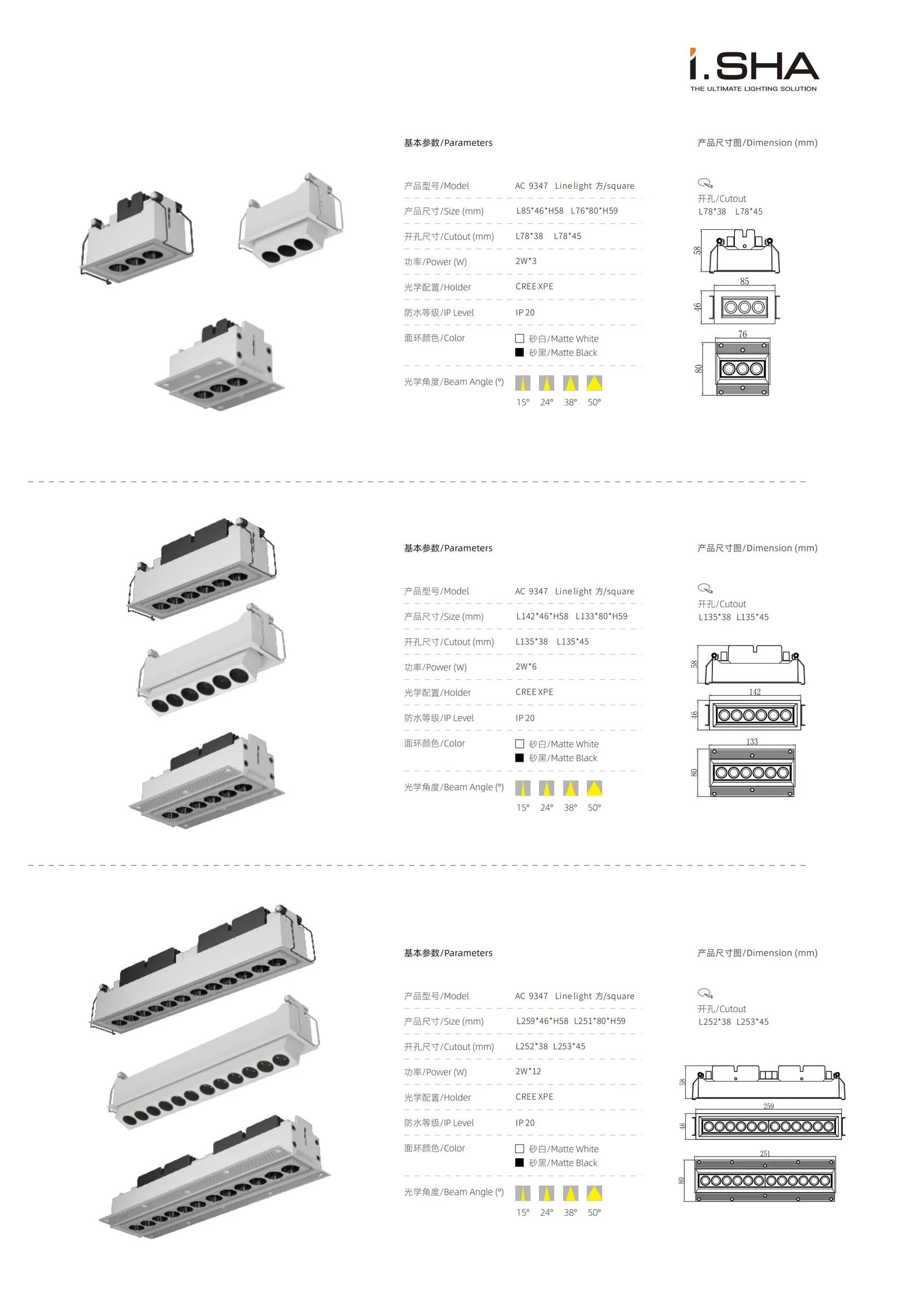

AC9347 Wide 3-Head Grille Spotlight

Wider 3-head recessed grille spotlight with stronger visual presence and flexible trim or trimless ceiling integration.

  • Model: AC9347 Line Light Square
  • Product size: L85 x 46 x H58 mm / L76 x 80 x H59 mm
  • Cutout size: L78 x 38 mm / L78 x 45 mm
  • Power: 2W x 3
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9347 Wide 6-Head Grille Spotlight

Wide 6-head recessed grille spotlight for retail stores, showrooms, offices and project spaces requiring adjustable key lighting.

  • Model: AC9347 Line Light Square
  • Product size: L142 x 46 x H58 mm / L133 x 80 x H59 mm
  • Cutout size: L135 x 38 mm / L135 x 45 mm
  • Power: 2W x 6
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

AC9347 Wide 12-Head Grille Spotlight

Wide 12-head recessed grille spotlight for longer ceiling lines, commercial spaces and large architectural lighting layouts.

  • Model: AC9347 Line Light Square
  • Product size: L259 x 46 x H58 mm / L251 x 80 x H59 mm
  • Cutout size: L252 x 38 mm / L253 x 45 mm
  • Power: 2W x 12
  • Holder: CREE XPE
  • IP level: IP20
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 50 degree

Applications

  • Hotel and Apartment Lighting
  • Suitable for hotel rooms, corridors, elevator halls, apartments and public spaces requiring clean recessed ceiling lighting.
  • Retail Store Lighting
  • The grille spotlight structure is suitable for product display zones, store aisles, brand shops and showroom lighting.
  • Office and Commercial Lighting
  • Can be used in meeting rooms, workspaces, reception areas and commercial interiors requiring adjustable recessed spot lighting.
  • Villa and High-End Residential Projects
  • Suitable for villas and premium interiors requiring trim or trimless ceiling integration and refined visual comfort.

Buyer Summary

AC9347 is suitable for B2B buyers looking for a grille spotlight supplier with upgraded structure, flexible installation and multiple recessed configurations. The series supports trim and trimless options, 25 degree lamp head adjustment, CREE XPE light source, IP20 indoor application, matte white and matte black finishes, and 3-head, 6-head and 12-head layouts. It is suitable for buyers searching for grille spotlight manufacturer China, grille spotlight factory China or wholesale grille spotlight China solutions for commercial projects.

The AC9347 grille spotlight supplier China series is an upgraded recessed commercial lighting solution designed for projects that require flexible module design, clean ceiling integration and precise lamp head adjustment. As a grille spotlight manufacturer China solution from Isha Lighting, AC9347 supports both trim and trimless installation options, helping project buyers adapt the same product series to different ceiling styles and architectural requirements. The series includes compact 3-head, medium 6-head and long 12-head configurations, with CREE XPE light source, IP20 indoor rating, matte white and matte black finish options, and beam angle choices including 15 degree, 24 degree, 38 degree and 50 degree. The 25 degree adjustable lamp head design allows better control of illumination direction, making the product suitable for offices, hotels, apartments, villas, retail stores, corridors, showrooms and commercial interior lighting projects. For importers, distributors, contractors and project buyers looking for a grille spotlight factory China partner, Isha Lighting provides wholesale China supply, OEM and ODM support, catalog support and project lighting selection assistance.

FAQ

What is the AC9347 grille spotlight series used for?

The AC9347 grille spotlight series is used for indoor commercial ceiling lighting, including hotels, apartments, villas, offices, retail stores, showrooms, corridors and modern interior projects.

What makes AC9347 different from standard recessed spotlights?

AC9347 features an upgraded module design, trim and trimless installation options, multiple 3-head, 6-head and 12-head configurations, and selected versions with 25 degree lamp head adjustment.

Is AC9347 suitable for B2B wholesale China orders?

Yes. Isha Lighting supplies AC9347 for B2B buyers looking for a grille spotlight supplier China, grille spotlight manufacturer China or wholesale grille spotlight China solution. Bulk orders only. No retail sales.

What beam angle options are available for AC9347?

The AC9347 series supports 15 degree, 24 degree, 38 degree and 50 degree beam angle options for different commercial lighting applications.

Can AC9347 be supplied with matte white and matte black finishes?

Yes. AC9347 supports matte white and matte black finish options, helping match different ceiling colors and project design styles.

Can Isha Lighting support OEM or ODM requirements for AC9347?

Yes. Isha Lighting can support OEM and ODM requirements for suitable B2B lighting projects, including configuration selection, finish options and project lighting support.
