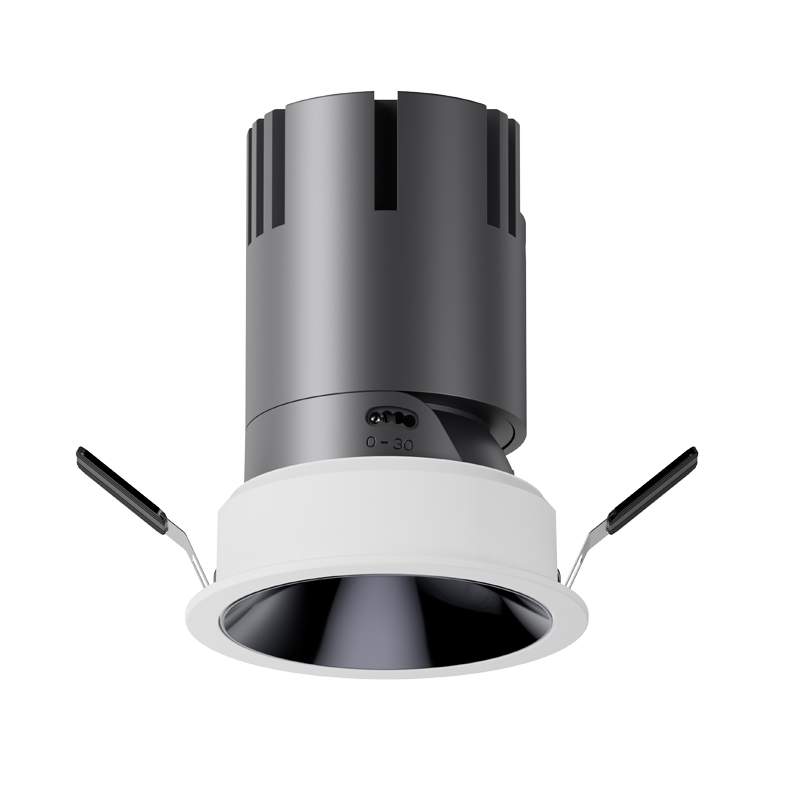

KX3168 Adjustable Anti-Glare LED Downlight for Commercial Lighting
The KX3168 Series adjustable LED downlight is designed for professional commercial lighting projects that require precise beam control, flexible installation, and strict glare management. Featuring a 0°–30° adjustable tilt mechanism, this series allows lighting designers to accurately aim the light output while maintaining a clean recessed appearance.
Developed for retail, hospitality, office, and architectural interiors, the KX3168 series combines high-efficiency LED performance, deep anti-glare optics, and modular configuration options, making it suitable for both accent lighting and general illumination in demanding environments.
0°–30° Adjustable Tilt for Precise Beam Aiming
A key feature of the KX3168 series is its mechanical adjustable tilt structure, allowing the luminaire to be aimed from 0° to 30° after installation.
This adjustable function enables:
-
Accurate lighting of walls, displays, shelves, and artworks
-
Reduced glare by redirecting the beam away from direct eye contact
-
Greater flexibility when ceiling cutout positions cannot be perfectly aligned
Compared with fixed downlights, the KX3168 offers significantly higher design freedom, especially in commercial spaces where lighting precision is critical.

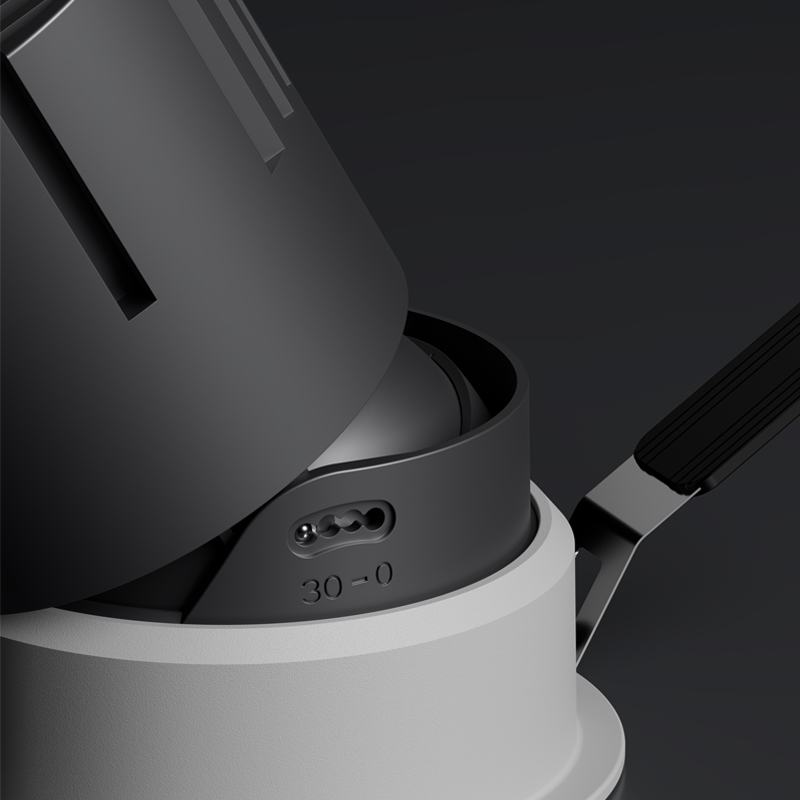

The KX3168 adjustable LED downlight features a precise 0–30 degree tilt mechanism, allowing accurate beam alignment for wall washing, accent lighting, and focused display illumination.
Deep Anti-Glare Design with Interchangeable Trims
The KX3168 series is engineered with a deep recessed optical structure and supports anti-glare trim options to ensure visual comfort in long-duration environments.
Available trim finishes include:
-
Sand Black
-
Sand White
-
Black anti-glare louver
This design effectively reduces high-angle glare while preserving beam uniformity, making the fixture suitable for projects with UGR-sensitive requirements such as offices, galleries, and premium retail spaces.
Multiple Cutout Sizes and Power Options
To match different ceiling heights and application needs, the KX3168 series is available in multiple cutout sizes and wattages:
Cutout options and power range:
-
Φ55: 7W / 12W
-
Φ75: 12W / 15W / 18W
-
Φ95: 25W
This flexible configuration allows designers to select the appropriate lumen output and beam intensity for ceiling heights up to commercial standards, without changing the overall fixture family.

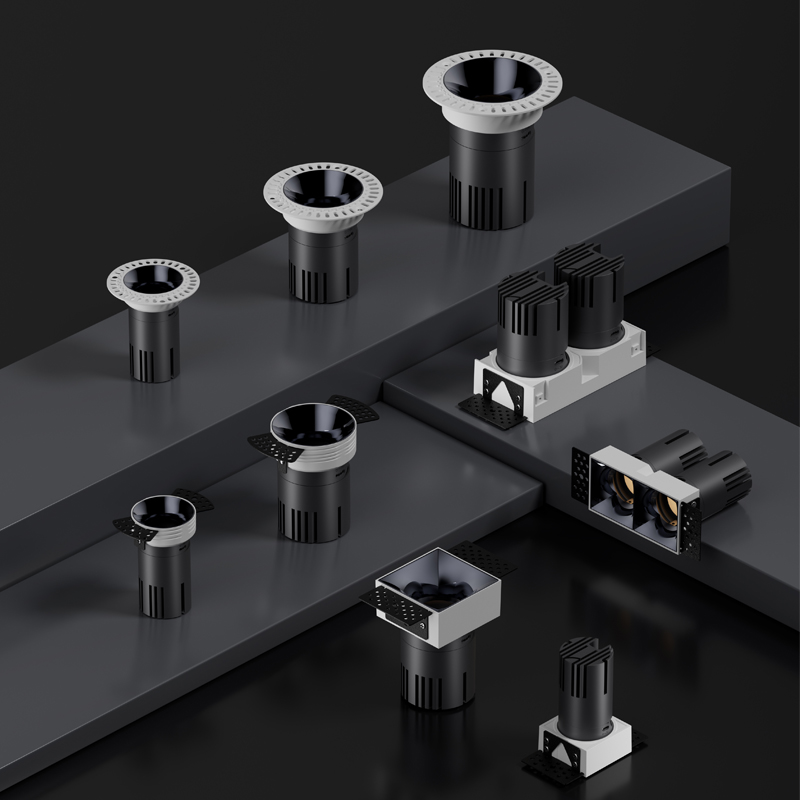

KX3168 Trimless Series Options
The KX3168 trimless LED downlight series offers a complete range of models to meet different ceiling structures, lighting requirements, and installation preferences.

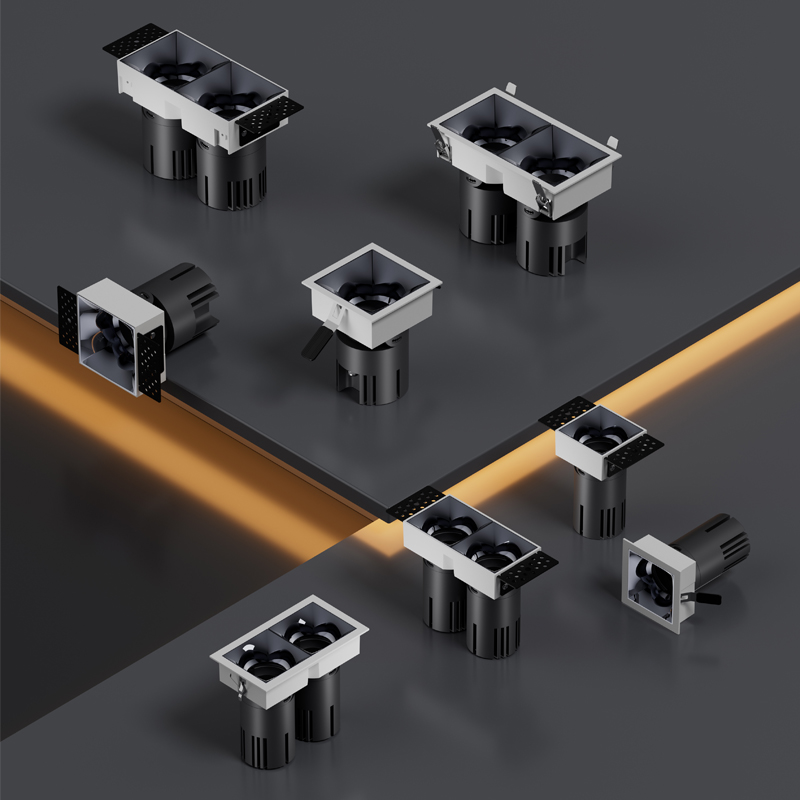

KX3168 Square LED Downlight Options
Available in both trimless and framed square designs to suit different ceiling structures and installation requirements.

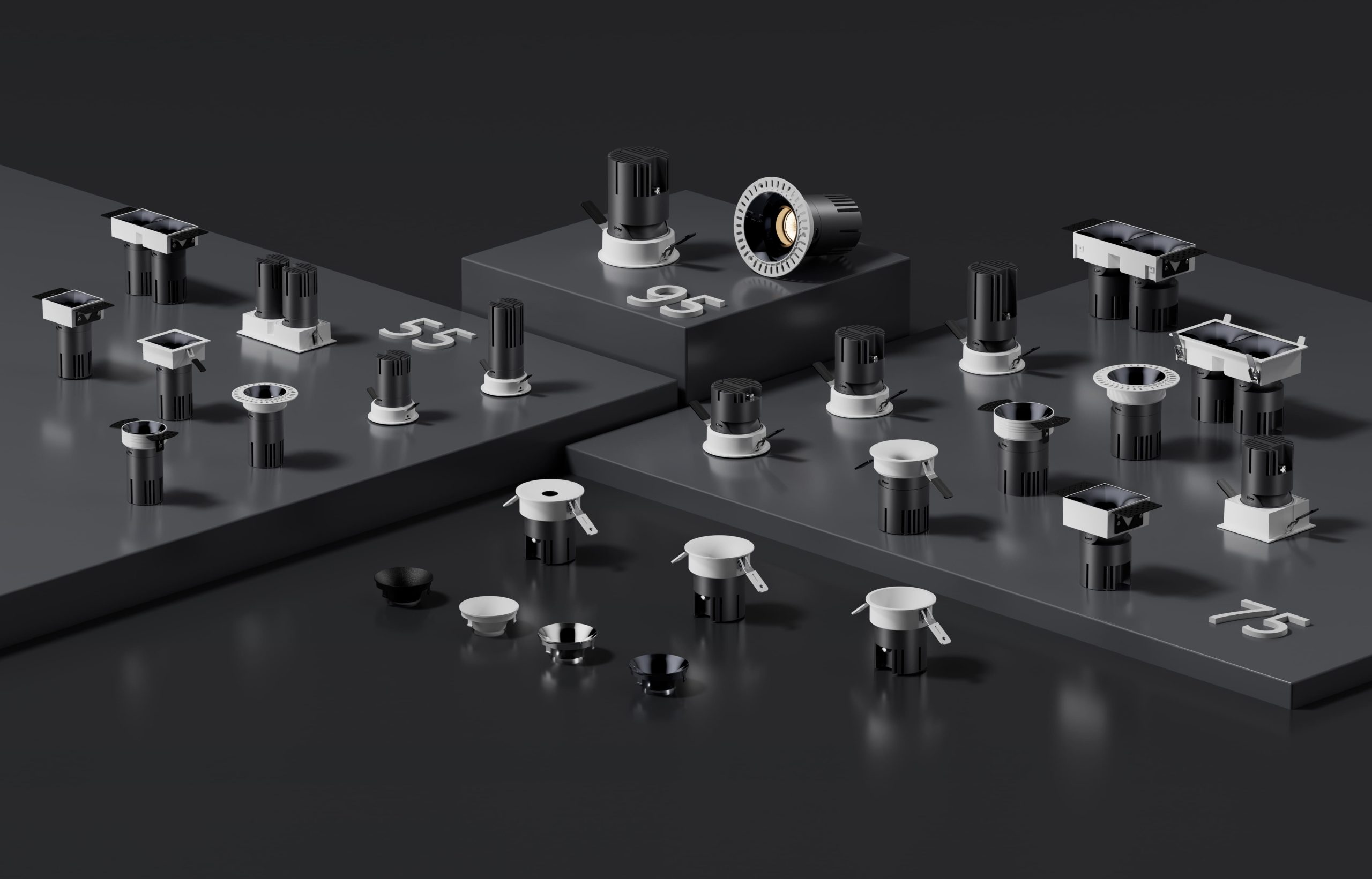

KX3168 Series – Full Range Overview
High-Quality LED Source and Color Performance
The KX3168 downlight is equipped with Bridgelux LED chips, delivering stable output and consistent color performance across the product range.
Color temperature options:
-
3000K
-
4000K
-
6000K
With a CRI of Ra98, the fixture ensures excellent color rendering, making it ideal for retail merchandise, hospitality interiors, and spaces where accurate color presentation is essential.
Optical Options for Different Lighting Effects
The series supports multiple beam angles to suit various lighting applications:
Standard beam angles:
-
15°
-
25°
-
38°
-
50°
From narrow accent lighting to wider area illumination, the KX3168 series provides consistent beam control with smooth light distribution.
Dimensions and Installation Details
Luminaire dimensions (mm):
-
Φ61 × H80 / H100
-
Φ83 × H80 / H96 / H118
-
Φ108 × H118
The fixture is designed for recessed ceiling installation with a compact body and efficient heat dissipation structure, ensuring long-term operational stability in continuous-use commercial environments.
Applications
The KX3168 adjustable anti-glare downlight is suitable for:
-
Retail stores and brand showrooms
-
Hotels and hospitality projects
-
Office and commercial interiors
-
Art galleries and exhibition spaces
-
High-end residential projects
Its combination of adjustable aiming, anti-glare performance, and high color fidelity makes it a reliable choice for professional lighting designers and contractors.
