KX3182 Ceiling Cylinder Downlight Supplier China

IP65 | High Lumen | Anti-Glare | High Ceiling Cylinder Downlight

KX3182 is a ceiling cylinder downlight series from Isha Lighting, designed for high ceiling, commercial and architectural lighting projects. The series features IP65 protection, anti-glare optical design, high lumen output, multiple beam angles and power options from 25W to 100W.

B2B Only — For wholesalers, importers, distributors, contractors and commercial project buyers. No retail sales.
Commercial DownlightsLED DownlightsSurface Mounted Downlights
Get a Quote Download Catalog

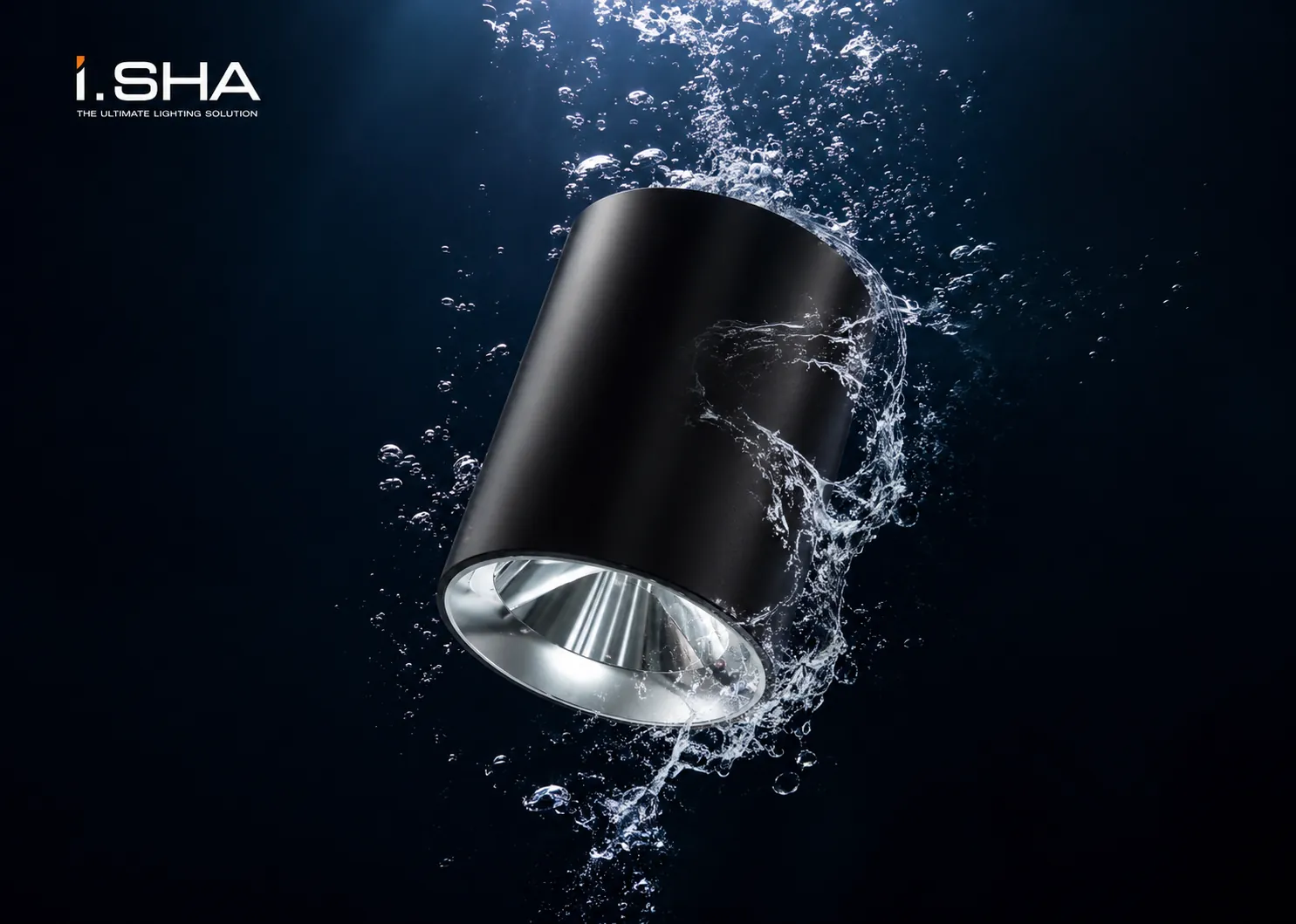

KX3182 ceiling cylinder downlight IP65 waterproof black surface mounted downlight for high ceiling commercial lighting
KX3182 ceiling cylinder downlight IP65 waterproof black surface mounted downlight for high ceiling commercial lightingKX3182 ceiling cylinder downlight airport application with 114mm and 138mm IP65 high ceiling modelsKX3182 ceiling cylinder downlight 170mm 206mm 236mm specifications for high ceiling commercial projectsKX3182 ceiling cylinder downlight series with high lumen anti-glare waterproof and anti-fog design for high ceiling lighting

Technical Specifications

model KX3182 Tower Series
product_type Ceiling cylinder downlight / surface mounted cylinder downlight
installation Ceiling mounted cylinder installation
ip_level IP65
finish Matte White / Matte Black
reflector_options Black / White / Silver / Gold optical reflector options shown in product images
beam_angle_options 15 degree / 24 degree / 38 degree / 60 degree
power_range 25W / 30W / 50W / 80W / 100W
available_sizes 114mm / 138mm / 170mm / 206mm / 236mm
application Airport hall, shopping mall, hotel public area, commercial building, office building, exhibition hall, transportation hub and high ceiling lighting projects
business_type B2B wholesale, OEM and ODM project support
supplier_terms Ceiling cylinder downlight supplier China, commercial cylinder downlight manufacturer China, surface mounted downlight factory China, high ceiling downlight wholesale China

Core Features

Ceiling Cylinder Downlight Design

KX3182 uses a clean cylindrical housing design suitable for modern commercial ceilings, architectural spaces and high ceiling lighting projects.

IP65 Protection

The IP65 rating supports applications where better protection against dust, moisture and foggy environments is required.

High Lumen Output

Power options from 25W to 100W make the series suitable for large spaces, high ceilings and demanding commercial lighting layouts.

Anti-Glare Optical Structure

The optical design helps reduce glare while keeping strong and comfortable illumination for commercial and public spaces.

Multiple Beam Angles

15 degree, 24 degree, 38 degree and 60 degree beam angle options support different ceiling heights and lighting effects.

B2B China Factory Supply

Isha Lighting supplies KX3182 for wholesalers, importers, distributors, contractors and commercial project buyers. Bulk orders only. No retail sales.

Product Range Overview

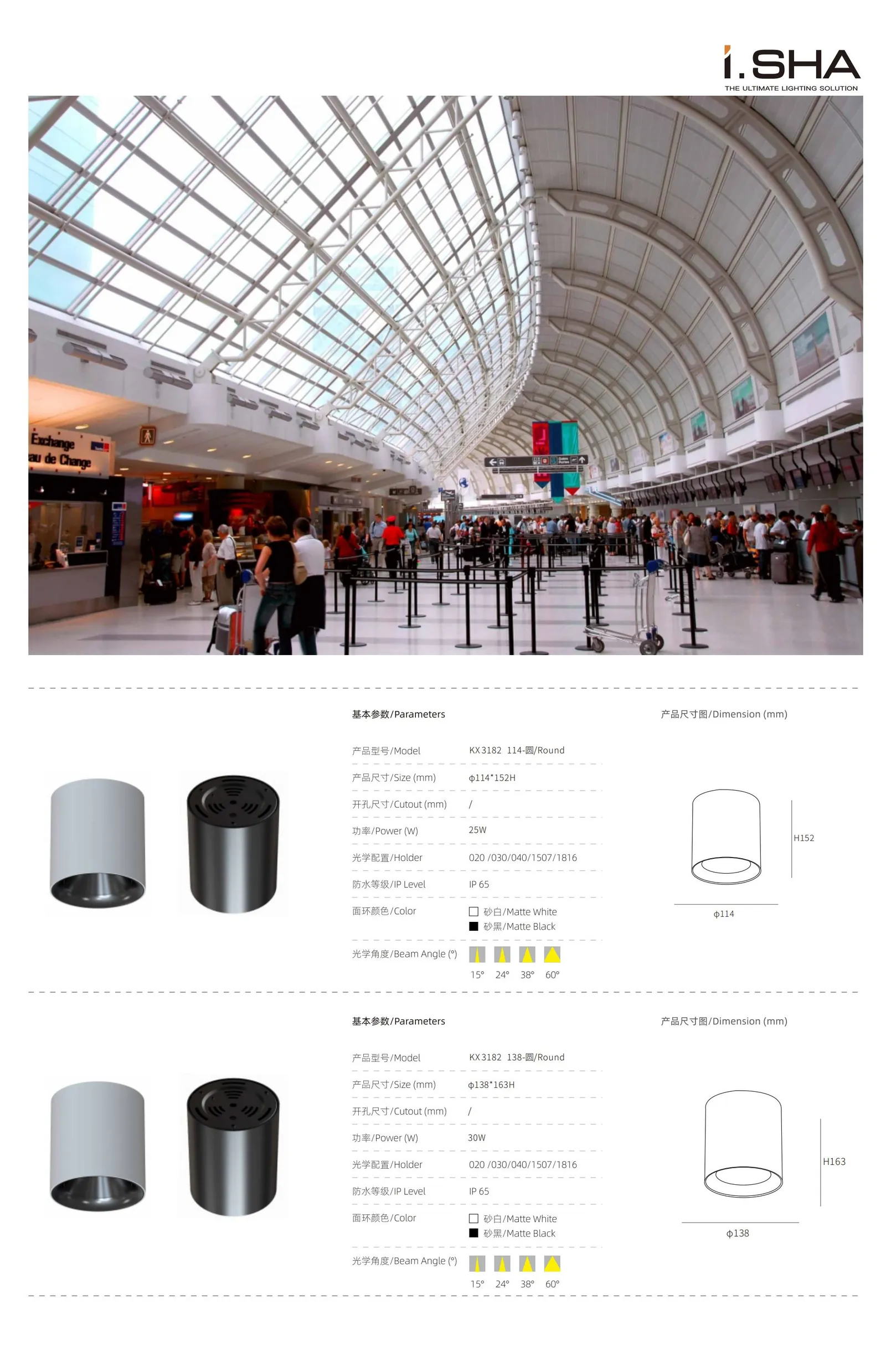

KX3182 114mm Ceiling Cylinder Downlight

Compact cylinder downlight for commercial ceiling and medium-height project lighting.

  • Model: KX3182 114mm Round
  • Product size: Φ114 x 152H mm
  • Cutout: Not required / ceiling mounted cylinder design
  • Power: 25W
  • Holder: 020 / 030 / 040 / 1507 / 1816
  • IP level: IP65
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 60 degree

KX3182 138mm Ceiling Cylinder Downlight

30W cylinder downlight for commercial interiors, corridors and architectural ceiling lighting.

  • Model: KX3182 138mm Round
  • Product size: Φ138 x 163H mm
  • Cutout: Not required / ceiling mounted cylinder design
  • Power: 30W
  • Holder: 020 / 030 / 040 / 1507 / 1816
  • IP level: IP65
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 60 degree

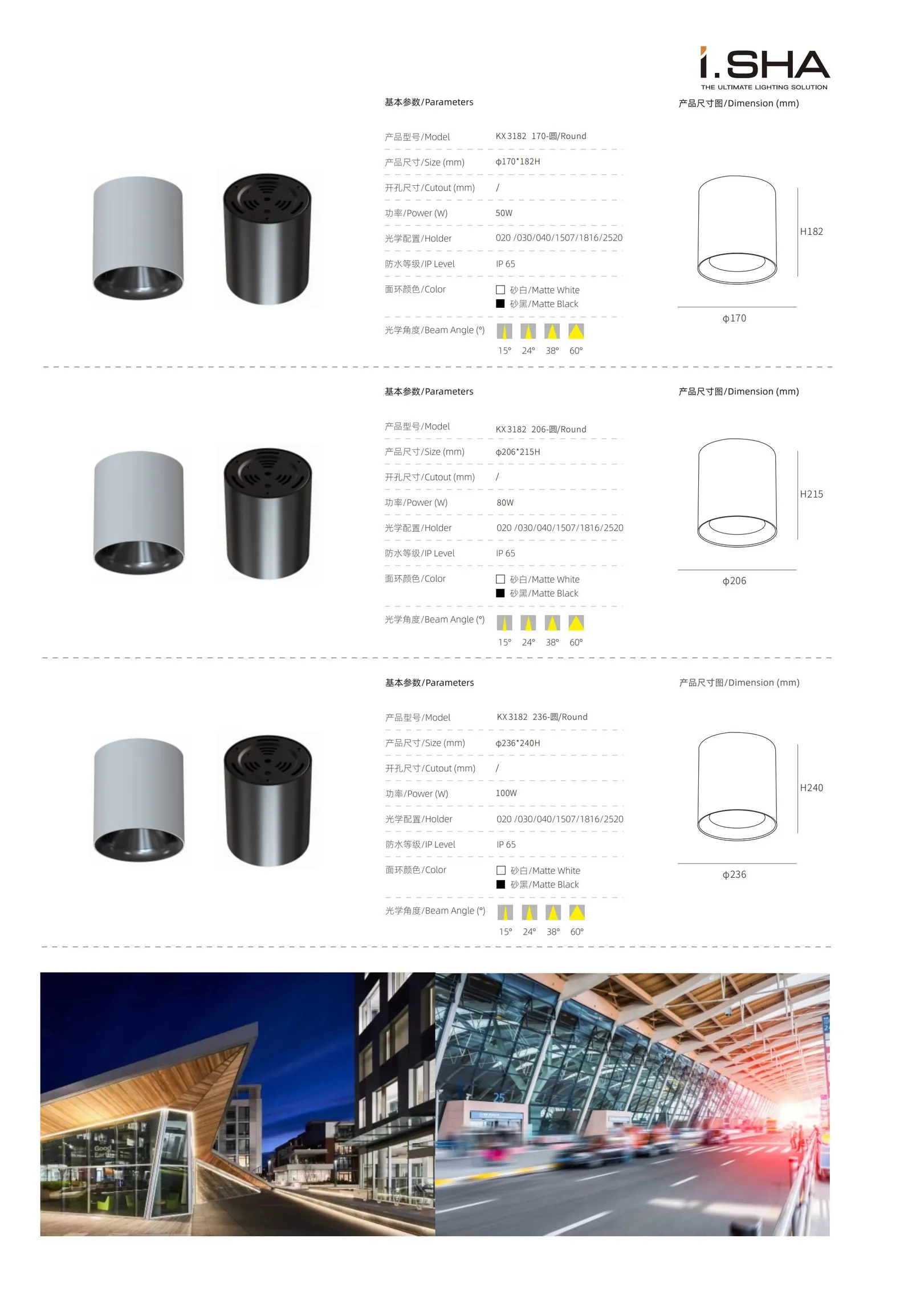

KX3182 170mm Ceiling Cylinder Downlight

50W high lumen cylinder downlight for high ceiling commercial lighting projects.

  • Model: KX3182 170mm Round
  • Product size: Φ170 x 182H mm
  • Cutout: Not required / ceiling mounted cylinder design
  • Power: 50W
  • Holder: 020 / 030 / 040 / 1507 / 1816 / 2520
  • IP level: IP65
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 60 degree

KX3182 206mm Ceiling Cylinder Downlight

80W commercial cylinder downlight for large public areas and high ceiling lighting layouts.

  • Model: KX3182 206mm Round
  • Product size: Φ206 x 215H mm
  • Cutout: Not required / ceiling mounted cylinder design
  • Power: 80W
  • Holder: 020 / 030 / 040 / 1507 / 1816 / 2520
  • IP level: IP65
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 60 degree

KX3182 236mm Ceiling Cylinder Downlight

100W large-size cylinder downlight for high ceiling applications requiring strong illumination.

  • Model: KX3182 236mm Round
  • Product size: Φ236 x 240H mm
  • Cutout: Not required / ceiling mounted cylinder design
  • Power: 100W
  • Holder: 020 / 030 / 040 / 1507 / 1816 / 2520
  • IP level: IP65
  • Finish: Matte White / Matte Black
  • Beam angle: 15 degree / 24 degree / 38 degree / 60 degree

Applications

  • Airport and Transportation Hub Lighting
  • KX3182 is suitable for airport halls, transit centers and high ceiling public areas requiring strong and stable illumination.
  • Shopping Mall Lighting
  • The cylinder downlight design works well for shopping malls, atriums, corridors, retail public areas and commercial ceilings.
  • Hotel and Commercial Building Lighting
  • The series can be used in hotel lobbies, commercial corridors, public spaces and architectural lighting projects.
  • High Ceiling Project Lighting
  • With 25W to 100W power options and multiple beam angles, KX3182 supports high ceiling layouts that require different light distributions.

Buyer Summary

KX3182 is suitable for B2B buyers who need a high-power ceiling cylinder downlight for commercial and high ceiling projects. It is especially suitable for lighting wholesalers, importers, distributors, contractors and project buyers searching for a ceiling cylinder downlight supplier China, commercial cylinder downlight manufacturer China, surface mounted downlight factory China or high ceiling downlight wholesale China solution.

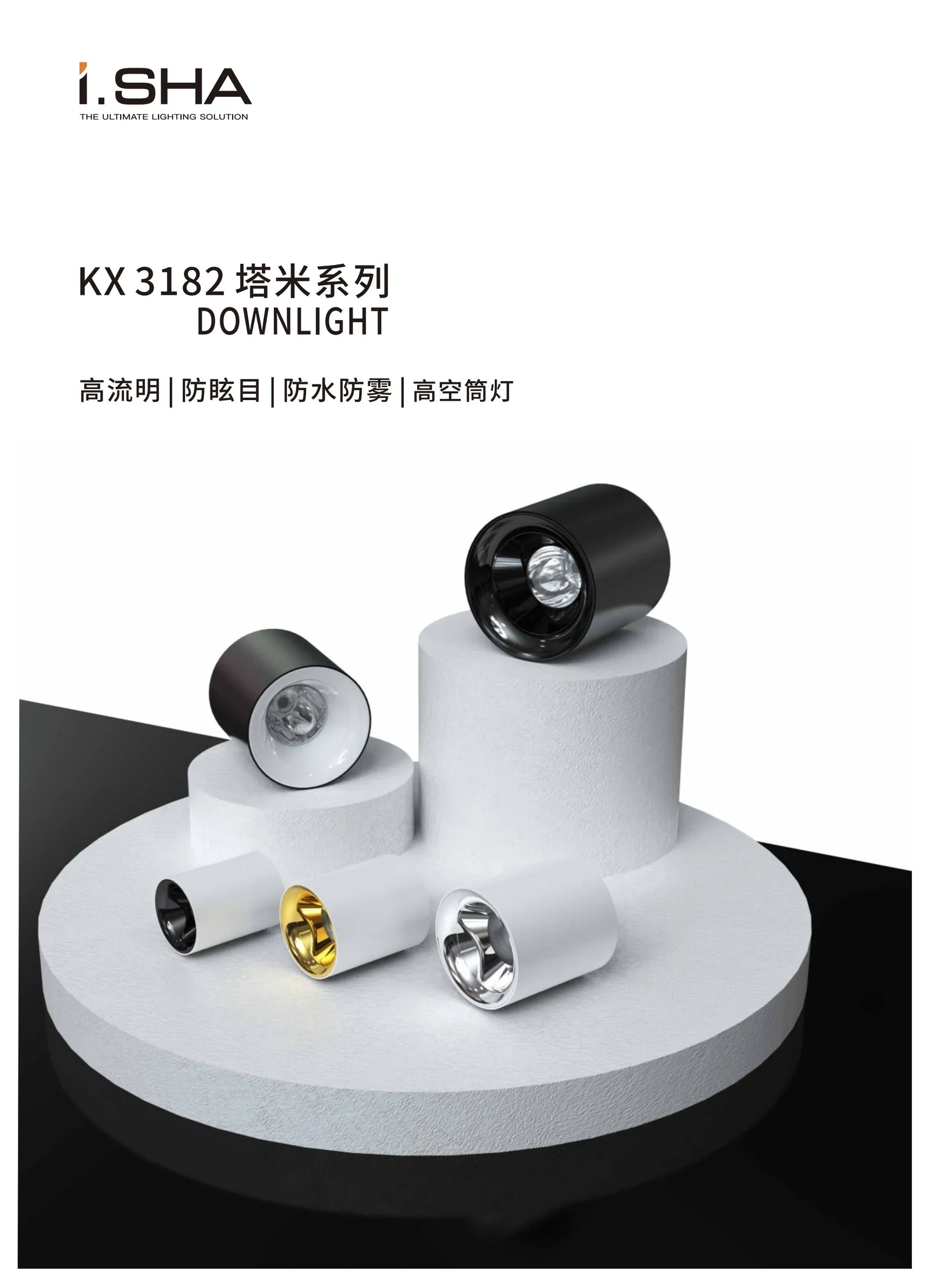

The KX3182 ceiling cylinder downlight series is a high-power cylindrical LED downlight solution designed for commercial buildings, high ceiling areas and architectural lighting projects. As a ceiling cylinder downlight supplier China, Isha Lighting provides this series for B2B buyers who need stable lumen output, clean cylindrical appearance, anti-glare optical performance and IP65 protection. The KX3182 series is suitable for airport halls, shopping malls, hotel public areas, commercial corridors, exhibition spaces, office buildings, transportation hubs and other high ceiling lighting applications. The product images show both matte white and matte black body options, with reflector finishes including black, white, silver and gold optical interiors. The series includes multiple sizes from 114mm to 236mm, with power options from 25W to 100W. Beam angle options include 15 degree, 24 degree, 38 degree and 60 degree, allowing project buyers to select narrow, medium or wider distribution depending on ceiling height and lighting layout. With IP65 protection, anti-glare design and high lumen performance, KX3182 is suitable for wholesalers, importers, distributors, contractors and project buyers looking for a commercial cylinder downlight manufacturer China, surface mounted downlight factory China or high ceiling downlight wholesale China partner.

FAQ

What is the KX3182 ceiling cylinder downlight used for?

KX3182 is designed for high ceiling commercial lighting projects, including airport halls, shopping malls, hotel public areas, commercial buildings, corridors, exhibition spaces and transportation hubs.

What power options are available for KX3182?

The KX3182 series includes 25W, 30W, 50W, 80W and 100W models, suitable for different ceiling heights and lighting requirements.

Is KX3182 an IP65 cylinder downlight?

Yes. KX3182 is shown as an IP65 ceiling cylinder downlight series, suitable for projects that require better protection against dust, moisture and foggy environments.

What beam angles does KX3182 support?

KX3182 supports 15 degree, 24 degree, 38 degree and 60 degree beam angle options, allowing buyers to select suitable light distribution for different project layouts.

Can I order KX3182 from Isha Lighting as a China factory supplier?

Yes. Isha Lighting supplies KX3182 for B2B buyers looking for a ceiling cylinder downlight supplier China, commercial cylinder downlight manufacturer China, surface mounted downlight factory China or high ceiling downlight wholesale China solution. Bulk orders only. No retail sales.

Does KX3182 support OEM or ODM projects?

Yes. Isha Lighting can support suitable OEM and ODM requirements for B2B lighting projects, including finish, beam angle, power selection, reflector option and project lighting support.
